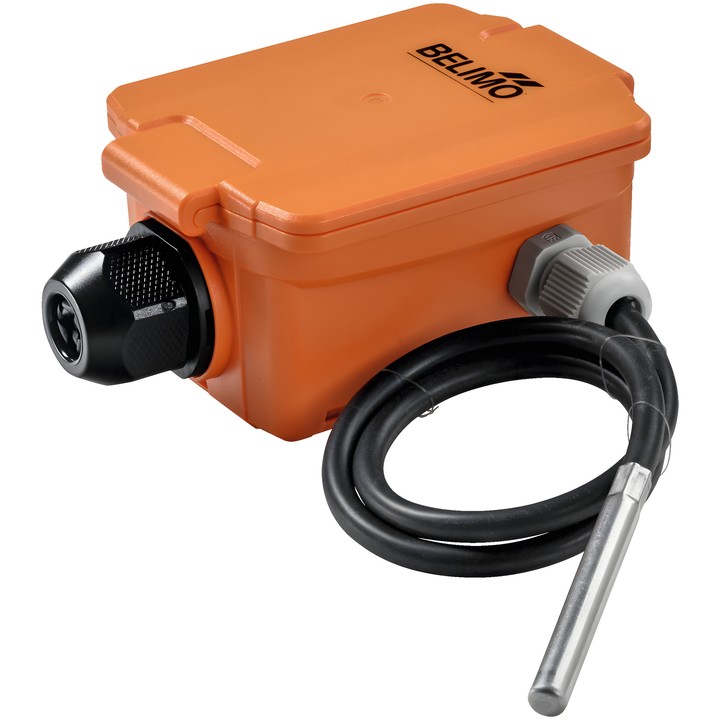

Belimo 22CT-14H - cable temperature sensor

Belimo 22CT-14H - cable temperature sensor

Belimo
zł302.10
VAT included
zł245.61 tax excluded

Active Belimo 22CT-14H cable temperature sensor for measuring air and water temperature. DC 24 V supply, 4...20 mA output signal and 8 selectable measuring ranges.

Cable length 2 m, probe length 50 mm, probe diameter 6 mm. Protection rating IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

Belimo 22CT-14H cable temperature sensor

Active sensor with a stainless steel probe, designed to measure temperature in air and water applications. Supplied with a 2 m cable.

Key features

  • Rated voltage: DC 24 V; voltage range: DC 13.5...26.4 V.
  • Output signal: 1x 4...20 mA, max. resistance 500 Ω.
  • 8 measuring ranges selectable using jumpers: S0–S7.
  • Measuring element based on Pt1000 class AA.
  • Probe length: 50 mm; probe diameter: 6 mm; cable length: 2 m.
  • Electrical connection: plug-in spring terminal block, max. 2.5 mm².
  • Protection rating: IP65 / NEMA 4X.
  • Ambient temperature: -35...50°C; medium temperature: -50...180°C.

The measuring range does not define the permissible medium temperature — the separately stated medium temperature applies.

  • Brand
    Belimo
  • Reference
    22CT-14H
  • EAN13
    7630498101014

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    4...20 mA
  • Probe length
    50 mm
  • AC/DC voltage
    DC 24 V
  • Current output power [Range]
    1x 4...20 mA, max. resistance 500 Ω

Techniczna karta katalogowa

Download (2.11MB)

Instrukcja montażu

Download (1004.6KB)

Techniczna karta katalogowa – 22CT-14H

Download (2.11MB)

EU Declaration of Conformity – 22CT-14H

Download (55.91KB)

Environmental Declaration – 22CT..

Download (72KB)
