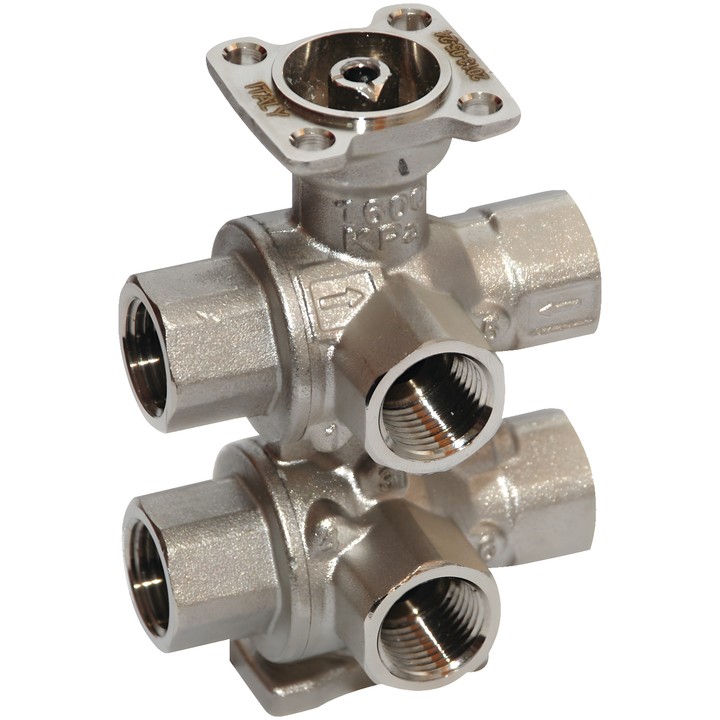

Belimo R3015-P63-P63B2 - 6-way linear-characteristic control valve

Name: Belimo R3015-P63-P63B2 - 6-way linear-characteristic control valve
Brand: Belimo
SKU: R3015-P63-P63B2
Price: 1141.44 PLN
Availability: OutOfStock

Belimo

zł1,141.44

VAT included

zł928.00 tax excluded

Belimo 6-way control valve for switching or regulating water flow on the water side of heating and cooling units in closed-loop water systems. This model has DN 15, PN 16, Rp 1/2" female thread and Kvs 0.63 m³/h for each of the two sequences.

The valve has an integrated pressure compensation function in the closed position and a dead zone between the cooling and heating sequences.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo R3015-P63-P63B2 – 6-way valve

Linear-characteristic control valve designed for switching or regulating flow on the water side of heating and cooling units in closed-loop water systems. The two sequences are operated over a rotation angle of 90°.

Key technical data

DN 15, PN 16; Rp 1/2" female threaded connection in accordance with ISO 7-1.
Kvs (Sequence 1): 0.63 m³/h; Kvs (Sequence 2): 0.63 m³/h.
Medium: water or water with glycol up to max. 50% vol.; medium temperature: 6...80°C [43...176°F].
Flow characteristic: linear; tightness: air-bubble tight, leakage rate A (EN 12266-1).
Closing pressure ∆ps: 350 kPa; maximum differential pressure ∆pmax: 100 kPa.
Sequence 1: 0...30° (recommended for cooling); dead zone: 30...60°; Sequence 2: 60...90° (recommended for heating).
The integrated pressure compensation function operates in the closed position (45°), while keeping the two sequences separated.
Nickel-plated brass body; closure element made of chrome-plated brass.

Installation is permitted from vertical to horizontal relative to the spindle. Installation with the spindle pointing downwards is not permitted.
