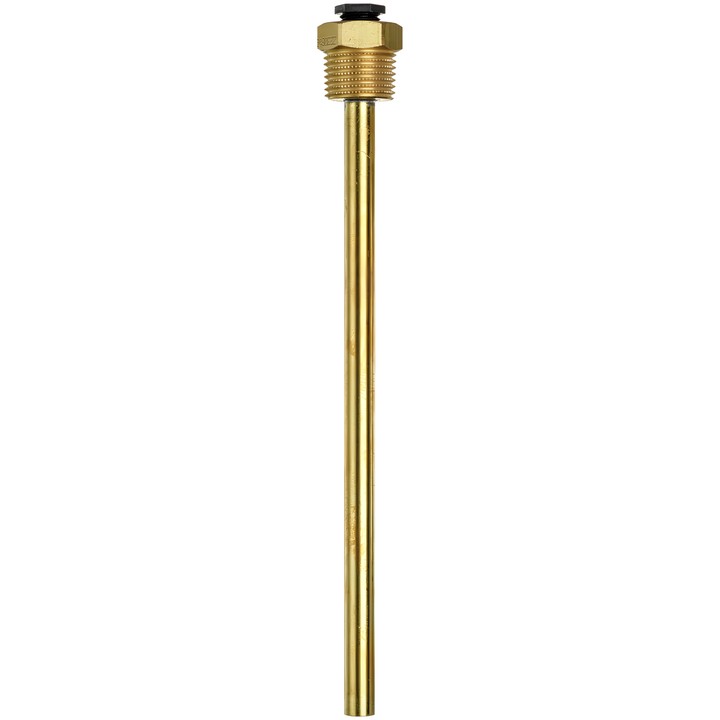

Belimo A-22P-A26 - brass pocket for temperature sensor

Belimo A-22P-A26 - brass pocket for temperature sensor

Belimo
zł74.42
VAT included
zł60.50 tax excluded

Brass pocket for mounting a temperature sensor, 300 mm long, with a diameter of 9 mm and R 1/2" male thread. Model A-22P-A26 has an integrated compression fitting and is designed for immersion and cable sensors 01DT.., 22DT.., 01CT.., 22CT..

Delivery in approx. 14 days
Share

Belimo A-22P-A26 brass pocket

Pocket with R 1/2" male thread and integrated compression fitting, designed for mounting immersion and cable sensors 01DT.., 22DT.., 01CT.., 22CT..

Key features and specifications

  • Pocket length: 300 mm; pocket diameter: 9 mm; SW22.
  • Maximum flow velocity for A-22P-A26: 1.7 m/s.
  • Medium: water or a water-glycol mixture; PN 16.
  • Fluid temperature: up to max. 130°C.
  • Material of turned component: CW614N (2.0401); tubes: CW508L (2.0321); clamping screw: polyamide (PA66/GF25).

  • Brand
    Belimo
  • Reference
    A-22P-A26
  • EAN13
    7630498101779

Techniczna karta katalogowa

Download (557.09KB)

Techniczna karta katalogowa – A-22P-A.. R MS

Download (544.32KB)
