Belimo 01CT-1RH - passive cable temperature sensor

Belimo 01CT-1RH - passive cable temperature sensor

Belimo
zł95.02
VAT included
zł77.25 tax excluded

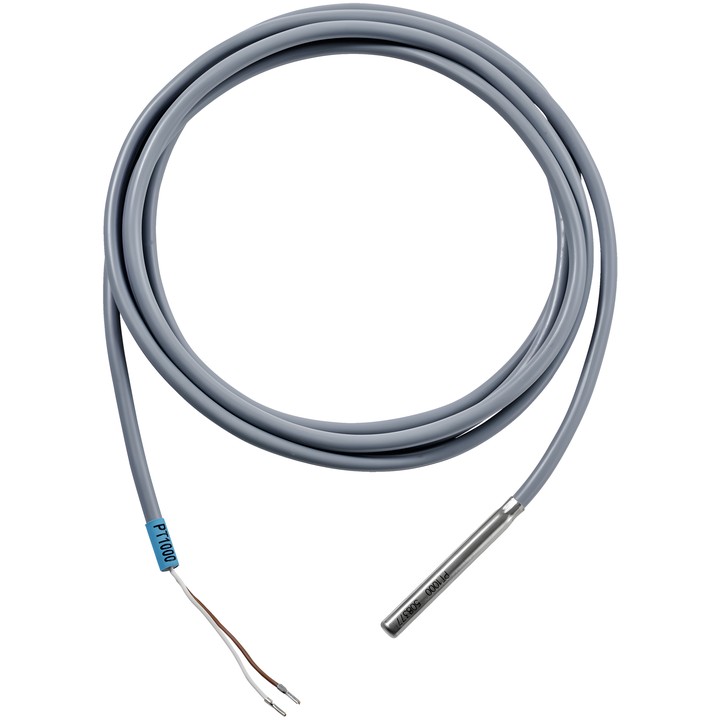

Belimo 01CT-1RH passive cable temperature sensor with Pt1000 class AA output signal. The stainless steel probe is 50 mm long and 6 mm in diameter.

Fitted with a 2 m, 2-wire PVC cable. IP67 and NEMA 4X protection rating.

Delivery in approx. 14 days
Share

Belimo 01CT-1RH – cable temperature sensor

Passive temperature sensor with a stainless steel probe and PVC cable. It can be used as a duct temperature sensor with a mounting flange or as an immersion sensor in combination with a thermowell.

Key features

  • Output signal: Pt1000 class AA.
  • Measured variable: temperature; measuring range: -35...100°C [-30...210°F].
  • Accuracy for class AA: ±0.1°C @ 0°C [±0.17°F @ 32° F].
  • Probe: length 50 mm, diameter 6 mm.
  • Electrical connection: 2 m, 2-wire cable.
  • Pt1000 measuring current: <0.3 mA @ 0°C [32°F].
  • Protection rating: IP67 and NEMA 4X.
  • Media: air and water.

The mounting flange and thermowell are listed in the documentation as accessories. When connecting long cables, cable resistance must be taken into account.

  • Brand
    Belimo
  • Reference
    01CT-1RH
  • EAN13
    7630498144653

  • Electrical connection
    Cable
  • Measured values
    Temperature
  • Output signal
    Pt1000 class AA
  • Passive temperature sensor output
    Pt1000 class AA
  • Probe length
    50 mm

Techniczna karta katalogowa

Download (884.87KB)

Instrukcja montażu

Download (962.72KB)

Techniczna karta katalogowa – 01CT-1..

Download (890.02KB)

Environmental Declaration – ..DT..

Download (70.29KB)
