Belimo 01CT-1CPF - cable temperature sensor with mounting flange

Belimo 01CT-1CPF - cable temperature sensor with mounting flange

Belimo
zł92.84
VAT included
zł75.48 tax excluded

Passive cable temperature sensor for measuring temperature in air ducts. Ni1000 output signal, 200 mm probe length and 6 mm diameter.

Fitted with a 2 m, 2-wire cable and mounting flange. Protection rating IP67 / NEMA 4X.

Delivery in approx. 14 days
Share

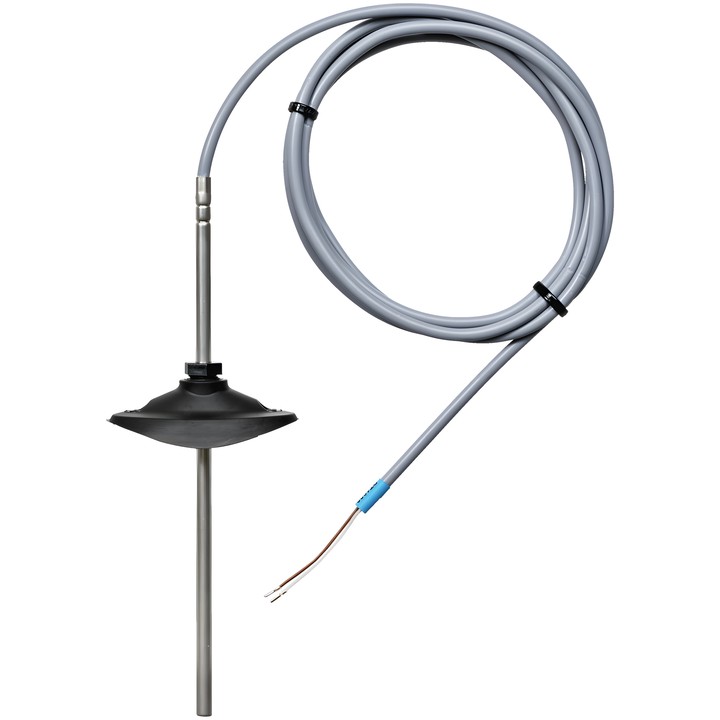

Belimo 01CT-1CPF cable temperature sensor

Passive temperature sensor designed for measuring temperature in air ducts. The 01CT-1CPF model has a stainless steel probe, PVC cable and mounting flange.

Key features

  • Output signal: Ni1000.
  • Probe length: 200 mm; probe diameter: 6 mm.
  • Electrical connection: 2 m, 2-wire cable.
  • Temperature measuring range: -35...100°C [-30...210°F].
  • Accuracy for Ni.. sensors: ±0.4°C @ 0°C [±0.7°F @ 32°F].
  • Measuring current for Ni1000: <0.3 mA @ 0°C [32°F].
  • Protection rating: IP67 and NEMA 4X.
  • Includes A-22D-A03 plastic mounting flange for a 6 mm probe.

When connecting a passive 2-wire sensor, account for the effect of supply current and cable resistance on measurement accuracy.

  • Brand
    Belimo
  • Reference
    01CT-1CPF
  • EAN13
    7630498117381

  • Electrical connection
    Cable
  • Measured values
    Temperature
  • Output signal
    Ni1000
  • Passive temperature sensor output
    Ni1000
  • Probe length
    200 mm

Techniczna karta katalogowa

Download (819.61KB)

Instrukcja montażu

Download (401.67KB)

Techniczna karta katalogowa – 01CT-1..F

Download (817.46KB)

Environmental Declaration – 01CT..

Download (71.67KB)
