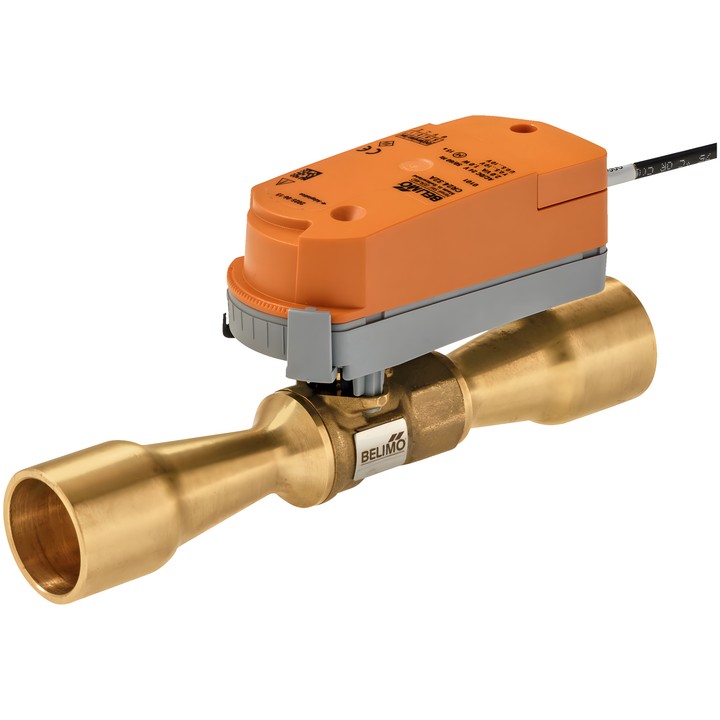

Belimo X8028M.1A32A - two-way control valve for refrigerants

Name: Belimo X8028M.1A32A - two-way control valve for refrigerants
Brand: Belimo
SKU: X8028M.1A32A
Price: 2303.79 PLN
Availability: OutOfStock

Belimo

zł2,303.79

VAT included

zł1,873.00 tax excluded

Belimo X8028M.1A32A two-way control valve for controlling the flow of HFC and HFO refrigerants, including A2L-class refrigerants (ISO 817). Kvs 1.2 m³/h, ODF 28-28 mm connections and AC/DC 24 V power supply.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo X8028M.1A32A

Two-way control valve for controlling the flow of HFC and HFO refrigerants. The technical data sheet indicates suitability for A2L-class refrigerants (ISO 817). When using flammable refrigerants, the user must check the product's suitability for the specific installation.

Key parameters

Kvs: 1.2 m³/h; flow characteristic: equal percentage (VDI/VDE 2173).
Connection: female ODF 28-28 mm solder sockets; flow is possible in both directions.
Operating pressure ps: 5000 kPa; maximum differential pressure ∆pmax: 3500 kPa.
Power supply AC/DC 24 V; modulating control, operating range Y 0.5...10 V and feedback signal U 0.5...10 V.
Motor running time: 15 s / 90°; electrical connection: Cable 3 m, 4x 0.34 mm².
Medium temperature: -20...70°C [-4...158°F]; with ZCQ-E: 70...120°C [158...248°F]. Ambient temperature: -30...60°C [-22...140°F], without radiation.
Tightness: no air bubbles, leakage rate class A (EN 12266-1).
Body: Brass CW617N; closing element: Stainless steel AISI 316L.
Degree of protection IEC/EN IP40; protection class IEC/EN III, Safety Extra-Low Voltage (SELV).
Permitted installation position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.
