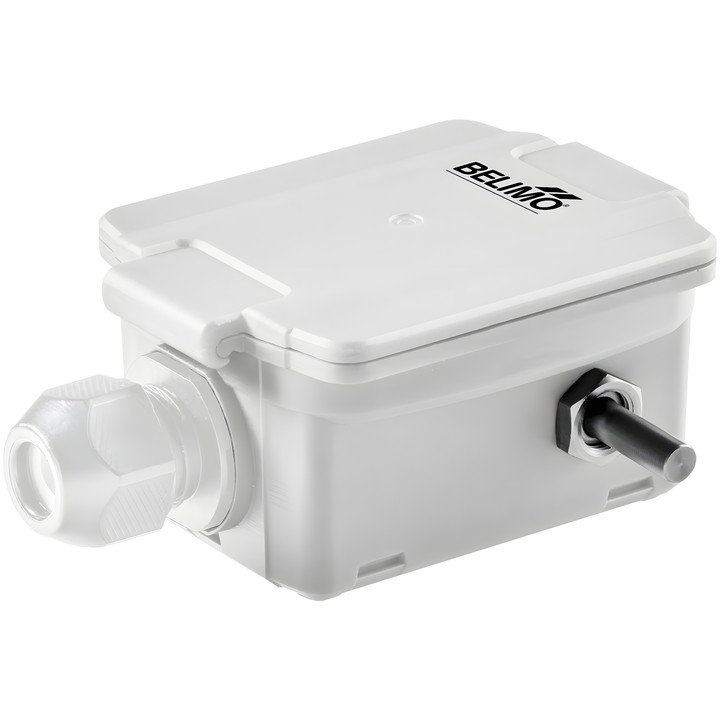

Belimo 01UT-1A0X - passive outdoor temperature sensor

Name: Belimo 01UT-1A0X - passive outdoor temperature sensor
Brand: Belimo
SKU: 01UT-1A0X
Price: 237.08 PLN
Availability: BackOrder

Belimo

zł237.08

VAT included

zł192.75 tax excluded

Belimo 01UT-1A0X passive outdoor temperature sensor with an external probe and Pt100 output signal. Designed to measure outdoor air temperature.

The probe is 25 mm long and has a diameter of 6 mm. The enclosure has an IP65 / NEMA 4X rating.

Delivery in approx. 14 days

Belimo 01UT-1A0X – outdoor temperature sensor

Passive sensor with an external probe for measuring outdoor air temperature. Model 01UT-1A0X has a Pt100 output signal.

Key specifications

Measuring range: -35...50°C [-30...120°F].
Temperature accuracy: Class B, ±0.3°C @ 0°C [±0.5°F @ 32° F].
Pt100 measuring current: <1 mA @ 0°C [32°F].
Probe length: 25 mm; probe diameter: 6 mm.
Electrical connection: pluggable terminal strip with spring terminals, max. 2.5 mm².
Cable entry: cable gland with strain relief, ø6...8 mm.
Protection rating: IP65 / NEMA 4X.
Ambient temperature: -35...50°C [-30...120°F].

The set includes an A-22D-A09 mounting plate, plugs and screws. Installation must be carried out by a qualified specialist with the power disconnected.
