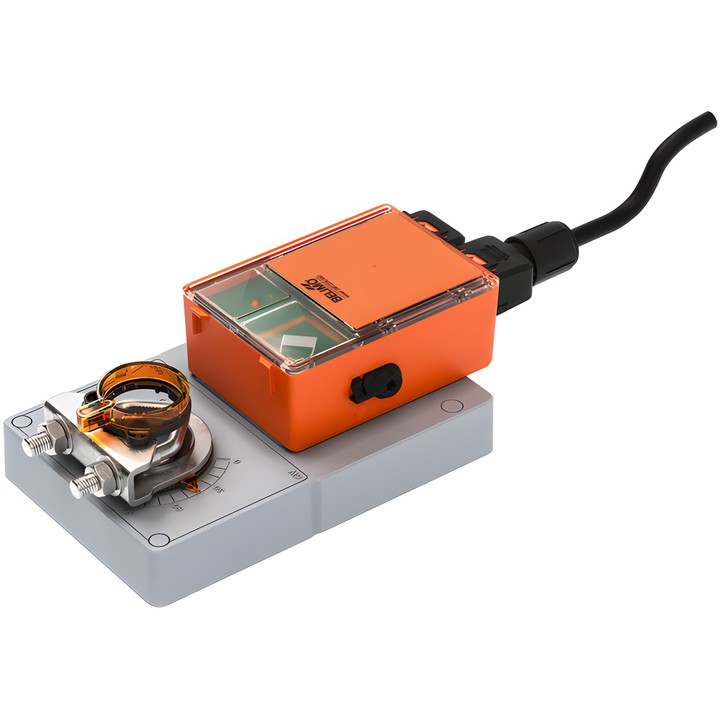

Belimo GM230.2A - rotary actuator for dampers

Belimo GM230.2A - rotary actuator for dampers

Belimo
zł1,410.18
VAT included
zł1,146.49 tax excluded

Rotary actuator for positioning dampers in building systems. Torque 40 Nm, AC 100...240 V supply and Open/Close or 3-point control.

Running time is 35 s / 90° and can be adjusted within a range of 35...150 s. The actuator has IP54 protection, manual override and a 1 m FRNC (halogen-free) cable.

Delivery in approx. 14 days
Share

Belimo GM230.2A – actuator for dampers

Rotary actuator designed for positioning dampers in building systems. It supports Open/Close and 3-point control.

Key features and specifications

  • Torque – motor: 40 Nm.
  • Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
  • Power consumption: 5.5 W during operation and 0.6 W at rest; rated power: 13 VA.
  • Running time – motor: 35 s / 90°; adjustable running time: 35...150 s.
  • Rotation angle: max. 95°; can be electronically limited on both sides using the Belimo Assistant 2 app.
  • Manual override using a side lever with locking function.
  • Reversible universal mounting clamp 12...26.7 mm.
  • Power and control connection: pluggable 1 m FRNC (halogen-free) cable, 3x 0.75 mm² [19 AWG].
  • Enclosure protection rating IEC/EN: IP54; ambient temperature: -30...55°C [-22...131°F].
  • Green LED status indicator; mechanical position indicator.
  • Parameters can be modified wirelessly via the NFC interface using the Belimo Assistant 2 app.

The device is intended for stationary heating, ventilation and air-conditioning systems. Installation work must be performed by appropriately qualified personnel.

  • Brand
    Belimo
  • Reference
    GM230.2A

  • AC/DC voltage
    AC 100...240 V
  • Power consumption (running)
    5.5 W
  • Power consumption (holding)
    0.6 W
  • Rated power
    13 VA
  • Power supply control connection
    FRNC cable (halogen-free) 1 m 3x 0.75 mm² [19 AWG]
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • Manual override
    With side lever, lockable
  • Running time (motor)
    35 s / 90°
  • Variable motor running time
    35...150 s
  • Ambient temperature
    -30...55°C [-22...131°F]
  • Torque
    40 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 12...26.7 mm

Techniczna karta katalogowa – GM230.2A

Download (2.41MB)

EU Declaration of Conformity – GM230.2A

Download (157.37KB)

Technical data sheet – GM230.2A

Download (2.41MB)
