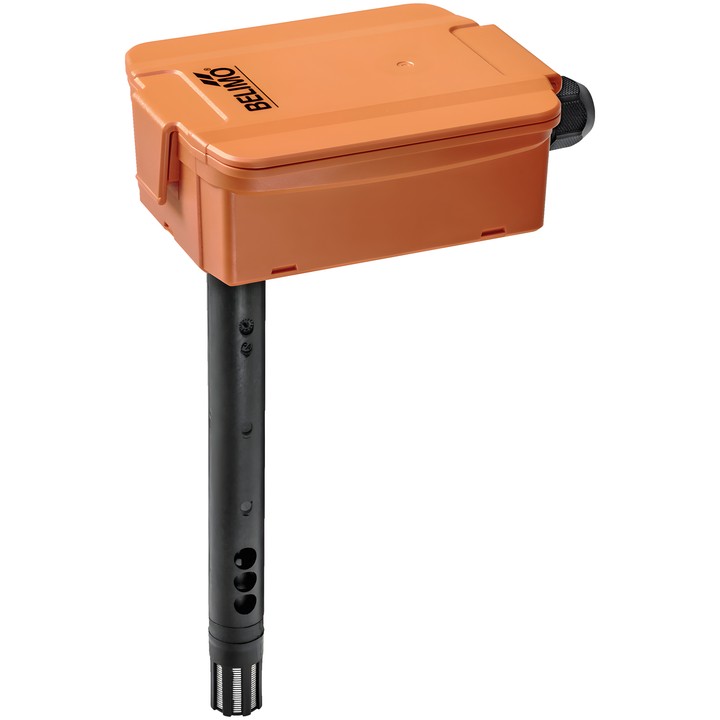

Belimo 22DC-110L - duct CO₂ and temperature sensor

Name: Belimo 22DC-110L - duct CO₂ and temperature sensor
Brand: Belimo
SKU: 22DC-110L
Price: 2453.85 PLN
Availability: OutOfStock

Belimo

zł2,453.85

VAT included

zł1,995.00 tax excluded

Duct CO₂ sensor with integrated passive NTC10k (10k2) temperature sensor. Measures CO₂ concentration in the range 0...2000 ppm; the active CO₂ output signal, 0...5 V or 0...10 V, is selected using a jumper.

AC/DC 24 V supply, probe length 180 mm, diameter 19.5 mm. Enclosure protection rating IP65 / NEMA 4X.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo 22DC-110L – duct CO₂ and temperature sensor

Sensor designed to measure CO₂ in duct air, with an integrated passive temperature sensor. It uses dual-channel NDIR technology to measure CO₂.

Key specifications

CO₂ measuring range: 0...2000 ppm; accuracy: ±(50 ppm + 3% of measured value).
Active CO₂ output signal: 1 x 0...5 V, 0...10 V, min. resistance 10 kΩ; select 0...5/10 V using a jumper.
Passive temperature output: NTC10k (10k2); temperature measuring range: 0...50°C [32...122°F].
Nominal supply: AC/DC 24 V; voltage range: AC 19...29 V / DC 15...35 V.
Probe length: 180 mm; probe diameter: 19.5 mm.
Enclosure protection rating: IP65 / NEMA 4X.
Electrical connection: pluggable spring-clamp terminal block, max. 2.5 mm².

Includes a mounting flange for a 19.5 mm duct sensor, type A-22D-A35.
