Belimo SMC24A-MP - damper actuator

Belimo SMC24A-MP - damper actuator

Belimo
zł1,036.77
VAT included
zł842.90 tax excluded

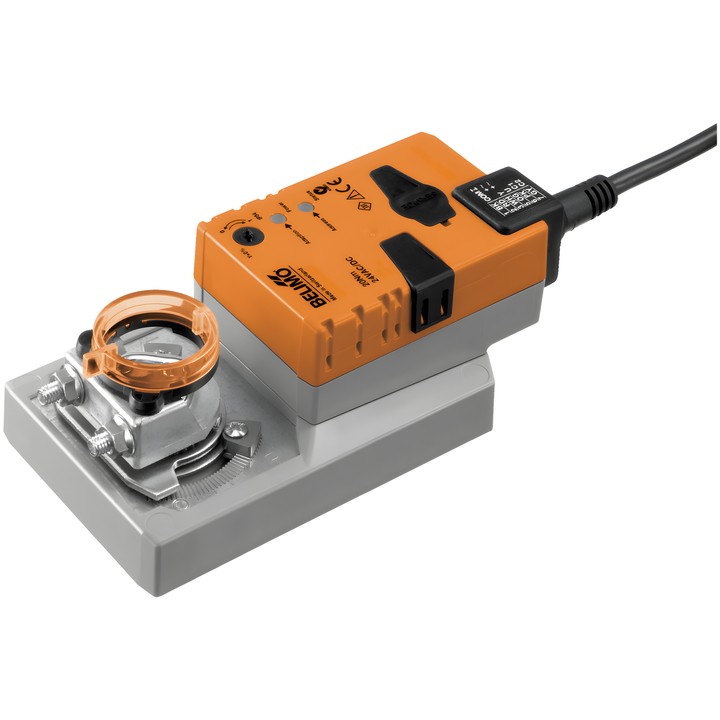

Belimo SMC24A-MP communication-capable damper actuator with a torque of 20 Nm, AC/DC 24 V supply and MP-Bus communication. The motor running time is 35 s / 90° and can be set within 35...150 s.

Supports analogue control in the range 2...10 V and a 2...10 V position feedback signal. Degree of protection: IP54.

Delivery in approx. 14 days
Share

Belimo SMC24A-MP – damper actuator

Actuator designed to position dampers in building services systems. It can operate with an analogue control signal or receive a digital control signal via MP-Bus. It allows a passive sensor, active sensor or switching contact to be connected and its signal to be transmitted via MP-Bus.

Key features and parameters

  • Torque: 20 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • MP-Bus communication; maximum 8 MP-Bus nodes.
  • Operating range of control signal Y: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 35 s / 90°; adjustable running time: 35...150 s.
  • Maximum rotation angle: 95°; adjustable mechanical stops on both sides.
  • Direction of movement selected by 0/1 switch; manual override by push-button with locking option.
  • Reversible universal mounting clamp 10...20 mm and mechanical position indicator.
  • Power consumption during operation: 4 W; in idle position: 1.5 W; for cable sizing: 7 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

Device parameters can be changed using Belimo Assistant 2. In MP-Bus communication mode, connection U functions as a communication interface and does not provide an analogue measuring voltage.

  • Brand
    Belimo
  • Reference
    SMC24A-MP
  • EAN13
    7630498114588

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    4 W
  • Power consumption (holding)
    1.5 W
  • Rated power
    7 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    35 s / 90°
  • Variable motor running time
    35...150 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm

Techniczna karta katalogowa

Download (1.86MB)

Instrukcja montażu

Download (570.12KB)

Techniczna karta katalogowa – SMC24A-MP

Download (1.87MB)

EU Declaration of Conformity – SMC24A-MP

Download (32.77KB)

Environmental Declaration – SM..

Download (72.47KB)
