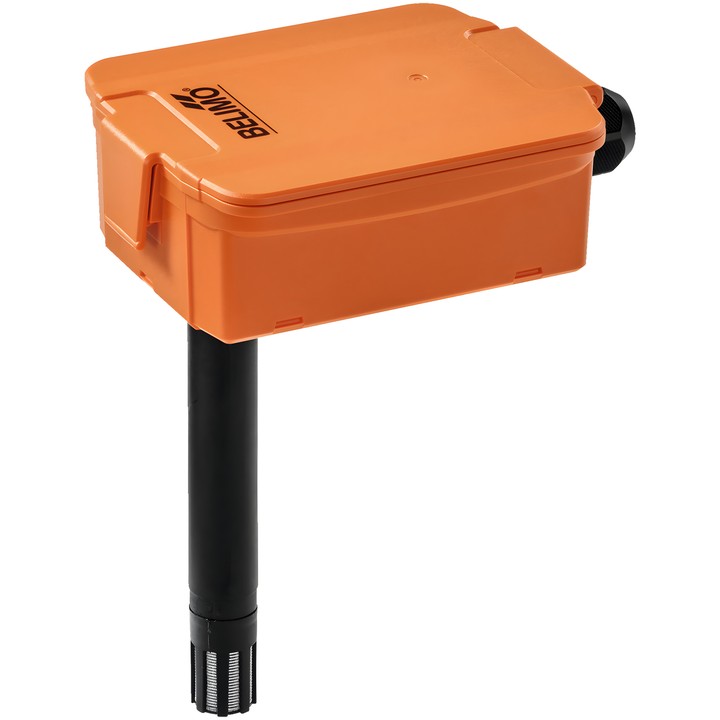

Belimo 22DTH-15M - duct humidity and temperature sensor

Belimo 22DTH-15M - duct humidity and temperature sensor

Belimo
zł903.23
VAT included
zł734.33 tax excluded

Duct-mounted air humidity and temperature sensor with Modbus RTU communication and two voltage outputs of 0...5 V or 0...10 V. AC/DC 24 V supply; probe length 140 mm.

Delivery in approx. 14 days
Share

Belimo 22DTH-15M

Duct-mounted sensor for measuring air humidity and temperature. Enthalpy or dew point can be selected as the output signal instead of the humidity signal.

Key features

  • Communication: Modbus RTU.
  • Nominal supply voltage: AC/DC 24 V.
  • Voltage output: 2 x 0...5 V, 0...10 V; min. resistance 10 kΩ. 0...5/10 V signal adjustable via jumper.
  • Temperature measurement range adjustable via Modbus; factory setting: -20...80°C [-5...175°F].
  • Relative humidity measurement range adjustable via Modbus; factory setting: 0...100% RH.
  • Probe length: 140 mm; probe diameter: 19.5 mm.
  • Degree of protection: IP65 / NEMA 4X.
  • Electrical connection: detachable spring terminal block, max. 2.5 mm².

  • Brand
    Belimo
  • Reference
    22DTH-15M
  • EAN13
    7630498117909

  • Electrical connection
    Terminals
  • Measured values
    Temperature Humidity
  • Output signal
    Modbus 0...5 V 0...10 V
  • Probe length
    140 mm
  • Humidity measuring range
    Adjustable via Modbus Factory setting: 0...100% RH
  • AC/DC voltage
    AC/DC 24 V
  • Temperature measuring range
    Adjustable via Modbus -20...80°C [-5...175°F]
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU

Techniczna karta katalogowa

Download (3.1MB)

Instrukcja montażu

Download (1.26MB)

Techniczna karta katalogowa – 22DTH-15..

Download (3.1MB)

EU Declaration of Conformity – 22DTH-15M

Download (39.85KB)

Environmental Declaration – 22DTH..

Download (70.37KB)
