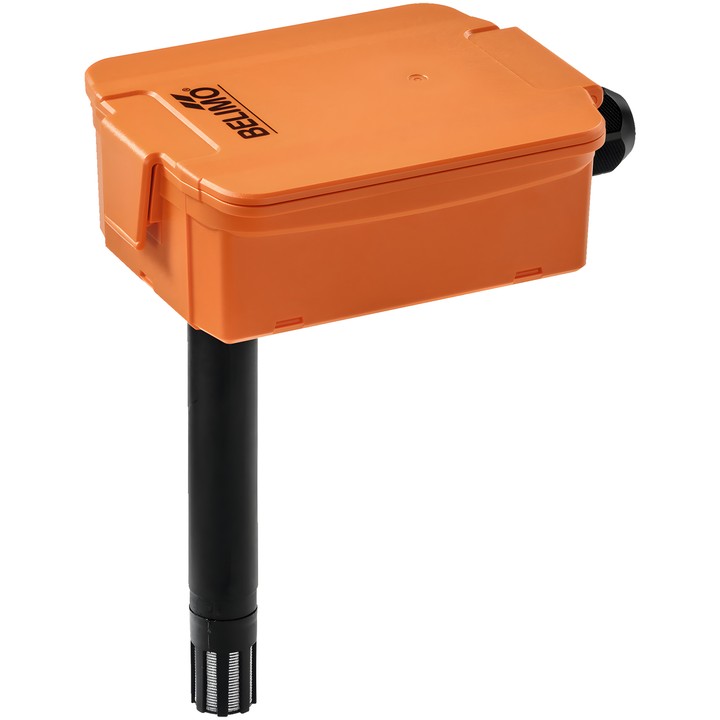

Belimo 22DTH-16M - duct humidity and temperature sensor

Belimo 22DTH-16M - duct humidity and temperature sensor

Belimo
zł896.78
VAT included
zł729.09 tax excluded

Duct humidity and temperature sensor with BACnet MS/TP communication and two voltage outputs of 0...5 V or 0...10 V. AC/DC 24 V supply, probe length 140 mm.

Delivery in approx. 14 days
Share

Belimo 22DTH-16M

Active sensor for measuring air humidity and temperature in a duct. Enthalpy or dew point can be selected as the output signal instead of the humidity signal.

Key features

  • Communication: BACnet MS/TP.
  • Nominal supply voltage: AC/DC 24 V.
  • Voltage outputs: 2 x 0...5 V, 0...10 V; min. resistance 10 kΩ. The 0...5/10 V signal is adjustable via jumper.
  • Temperature measuring range adjustable via BACnet; factory setting: -20...80°C [-5...175°F].
  • Relative humidity measuring range adjustable via BACnet; factory setting: 0...100% RH.
  • Probe length: 140 mm; probe diameter: 19.5 mm.
  • Enclosure protection rating: IP65 / NEMA 4X.
  • Electrical connection: plug-in spring-clamp terminal block, max. 2.5 mm².

  • Brand
    Belimo
  • Reference
    22DTH-16M
  • EAN13
    7630498101212

  • Electrical connection
    Terminals
  • Measured values
    Temperature Humidity
  • Output signal
    BACnet 0...5 V 0...10 V
  • Probe length
    140 mm
  • Humidity measuring range
    Adjustable via BACnet Factory setting: 0...100% RH
  • AC/DC voltage
    AC/DC 24 V
  • Temperature measuring range
    Adjustable via BACnet -20...80°C [-5...175°F]
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    BACnet MS/TP

Techniczna karta katalogowa

Download (3.12MB)

Instrukcja montażu

Download (1.26MB)

Techniczna karta katalogowa – 22DTH-16M

Download (3.12MB)

EU Declaration of Conformity – 22DTH-16M

Download (39.85KB)

Environmental Declaration – 22DTH..

Download (70.37KB)
