Belimo 22PEM-1UG - DN 40 thermal energy meter

Belimo 22PEM-1UG - DN 40 thermal energy meter

Belimo
zł4,785.39
VAT included
zł3,890.56 tax excluded

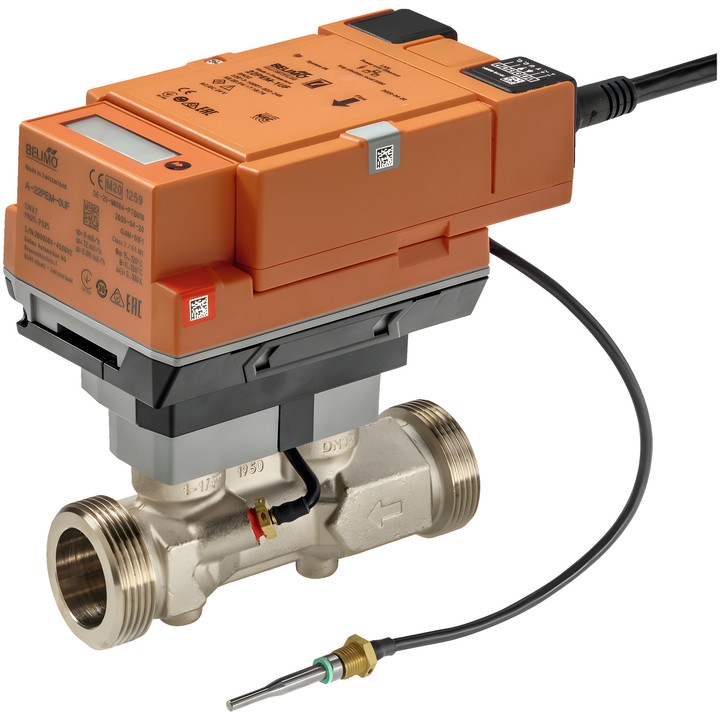

Thermal energy meter for measuring energy in a heating or cooling circuit. Model 22PEM-1UG has a G 2" male threaded connection, a nominal flow rate qp 10 m³/h, PN 25 and an AC/DC 24 V power supply.

Flow is measured using the ultrasonic method. The device supports BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU and MP-Bus, and can be configured via NFC with Belimo Assistant 2 or through the integrated web server.

Delivery in approx. 14 days
Share

Belimo 22PEM-1UG – thermal energy meter

The meter measures flow and temperature to determine thermal energy in a heating or cooling circuit. It complies with EN 1434 and has MID approval as a heat meter. When used as a cooling meter, local regulations must be observed.

Key features

  • DN 40, G 2" male thread in accordance with ISO 228-1, PN 25.
  • Nominal flow rate qp 10 m³/h; maximum flow rate qs 20 m³/h; minimum flow rate qi 0.1 m³/h.
  • Ultrasonic flow measurement; medium: water.
  • AC/DC 24 V power supply; PoE power supply is also possible.
  • Communication: BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU and MP-Bus.
  • Voltage output: 1 x 0...10 V, 0.5...10 V, 2...10 V.
  • LCD display; configuration via NFC with Belimo Assistant 2 or through the integrated web server.
  • Insulation cover included; according to the data sheet, it is not included in the Asia-Pacific region.

The sensor module contains an integrated T2 temperature sensor, while sensor T1 is an external sensor. The meter can be configured to measure heating, cooling, or heating and cooling.

  • Brand
    Belimo
  • Reference
    22PEM-1UG
  • EAN13
    7630498110382

  • Electrical connection
    Cable
  • Measured values
    Flow Temperature
  • Output signal
    BACnet Modbus MP-Bus 0...10 V
  • AC/DC voltage
    AC/DC 24 V
  • Display type
    LCD
  • Output voltage range [Range]
    1 x 0...10 V, 0.5...10 V, 2...10 V
  • Communication
    BACnet/IP BACnet MS/TP Modbus TCP Modbus RTU MP-Bus
  • Flow qp
    10
  • Medium
    Water
  • Valve size
    40 mm | 1 1/2 inch

Techniczna karta katalogowa

Download (4.77MB)

Instrukcja montażu

Download (1.48MB)

Techniczna karta katalogowa – 22PEM-1U..

Download (4.97MB)

EU Declaration of Conformity – 22PEM-1UG

Download (139.44KB)

Environmental Declaration – 22PEM..

Download (71.66KB)
