Belimo 22PF-1UC - ultrasonic flow sensor

Name: Belimo 22PF-1UC - ultrasonic flow sensor
Brand: Belimo
SKU: 22PF-1UC
Price: 1553.55 PLN
Availability: BackOrder

Belimo

zł1,553.55

VAT included

zł1,263.05 tax excluded

Ultrasonic flow sensor for closed cold and hot water systems and water-glycol mixtures. Measures flow and temperature; monitors glycol content and compensates for its effect on flow measurement.

DN 15, G 3/4", PN 25, FS 0.5 l/s (1.8 m³/h). AC/DC 24 V supply; 0...10 V voltage output or BACnet MS/TP, Modbus RTU, MP-Bus communication. Configuration via NFC using Belimo Assistant 2.

Delivery in approx. 14 days

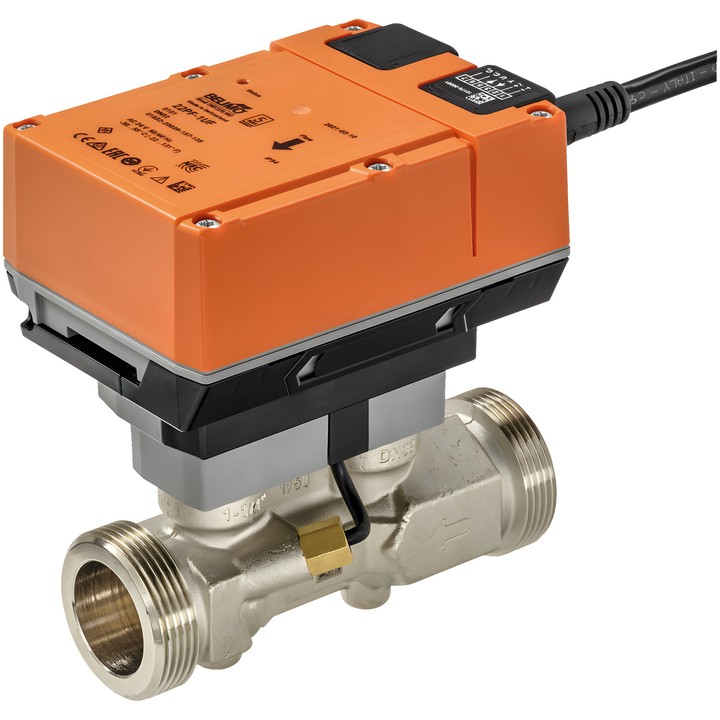

Belimo 22PF-1UC – flow sensor

Sensor for closed cold and hot water systems, designed to measure the flow and temperature of water and water-glycol mixtures. Ultrasonic flow measurement automatically compensates for the effect of glycol content.

Key features and specifications

Model 22PF-1UC: DN 15, G 3/4" male thread in accordance with ISO 228-1, PN 25.
FS 0.5 l/s (1.8 m³/h); theoretical Kvs value 3.9 m³/h.
Medium: water or water containing up to 60% vol. glycol.
AC/DC 24 V supply; power connection: cable 6x 0.75 mm².
Voltage output: 1 x 0...10 V, 0.5...10 V, 2...10 V or a user-defined range. Factory setting: DC 0...10 V; maximum load 1 mA.
Communication: BACnet MS/TP, Modbus RTU, MP-Bus. Configuration via NFC using Belimo Assistant 2.
Flow totalisation available; the analogue output can be configured for flow or medium temperature.
Medium temperature: -20...120°C; ambient temperature: -30...55°C. At a medium temperature <2°C, frost protection must be provided.
IP54 protection rating. Permitted mounting position: vertical to horizontal; suspended installation is not permitted.
Insulation shell A-22PEM-A01 included; according to the data sheet, the shell is not included in the Asia Pacific region.

Brand

Belimo
Reference

22PF-1UC
EAN13

7630498110405

Electrical connection

Cable
Measured values

Flow Temperature
Output signal

BACnet Modbus MP-Bus 0...10 V
AC/DC voltage

AC/DC 24 V
Active sensor output note

DC 0...10 V (factory setting), selectable via NFC, max. load 1 mA User-defined: - Lower limit: 0...8 V - Upper limit: 2...10 V
Output voltage range [Range]

1 x 0...10 V, 0.5...10 V, 2...10 V or user-defined
Communication

BACnet MS/TP Modbus RTU MP-Bus
Medium

Water, water with max. 60% vol. glycol.
Valve size

15 mm
Range value

0.5 l/s
