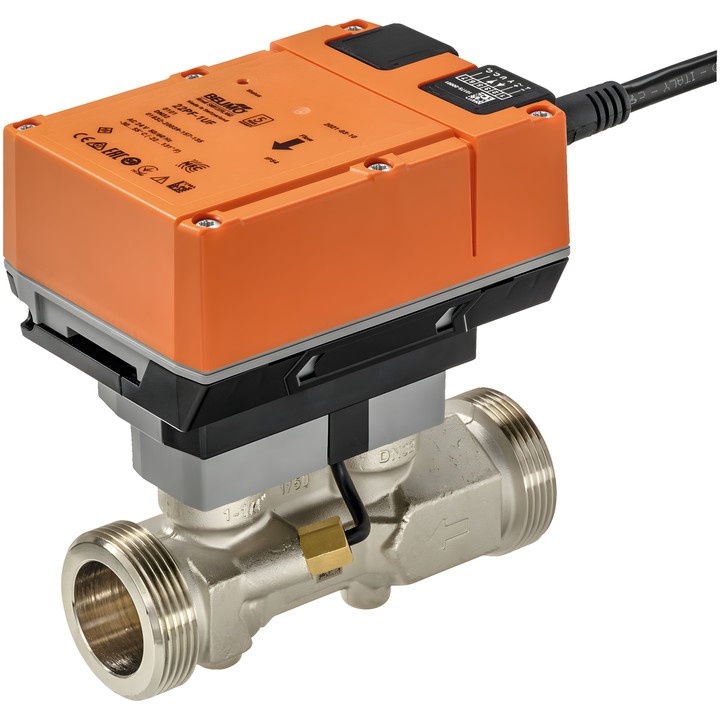

Belimo 22PF-1UG - DN 40 ultrasonic flow sensor

Belimo 22PF-1UG - DN 40 ultrasonic flow sensor

Belimo
zł1,836.02
VAT included
zł1,492.70 tax excluded

Ultrasonic flow sensor for closed chilled- and hot-water systems and water-glycol mixtures. Measures flow and temperature; FS 3.33 l/s (12 m³/h), DN 40, PN 25.

AC/DC 24 V power supply. 0...10 V voltage output or communication via BACnet MS/TP, Modbus RTU or MP-Bus. Configuration via Belimo Assistant 2.

Delivery in approx. 14 days
Share

Belimo 22PF-1UG flow sensor

The 22PF-1UG uses ultrasonic flow measurement in closed chilled- and hot-water systems and water-glycol mixtures. It also measures temperature. The sensor measures the glycol content of the medium and takes it into account when measuring flow.

Key features

  • DN 40, PN 25; G 2" male threaded connection in accordance with ISO 228-1.
  • FS 3.33 l/s (12 m³/h); theoretical Kvs value: 23.6 m³/h.
  • AC/DC 24 V power supply; electrical connection: cable 6x 0.75 mm².
  • Voltage output: 1 x 0...10 V, 0.5...10 V, 2...10 V or user-defined range; factory setting: DC 0...10 V.
  • Communication: BACnet MS/TP, Modbus RTU, MP-Bus.
  • Measuring medium: water or water with max. 60% vol. glycol.
  • Medium temperature range: -20...120°C; degree of protection IP54.
  • Configuration via Belimo Assistant 2; NFC interface.
  • Insulation shell included for DN 32...50, excluding the Asia-Pacific region.

Permitted mounting position: from vertical to horizontal; suspended installation is not permitted. Dimensions listed in the datasheet for this model: L 145 mm, B 91 mm, H 134 mm.

  • Brand
    Belimo
  • Reference
    22PF-1UG
  • EAN13
    7630498110443

  • Electrical connection
    Cable
  • Measured values
    Flow Temperature
  • Output signal
    BACnet Modbus MP-Bus 0...10 V
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    DC 0...10 V (factory setting), selectable via NFC, max. load 1 mA User-defined: - Lower limit: 0...8 V - Upper limit: 2...10 V
  • Output voltage range [Range]
    1 x 0...10 V, 0.5...10 V, 2...10 V or user-defined
  • Communication
    BACnet MS/TP Modbus RTU MP-Bus
  • Medium
    Water, water with max. 60% vol. glycol.
  • Valve size
    40 mm
  • Range value
    3.33 l/s

Techniczna karta katalogowa

Download (4.97MB)

Instrukcja montażu

Download (941.26KB)

Techniczna karta katalogowa – 22PF-1U..

Download (4.75MB)

EU Declaration of Conformity – 22PF-1UG

Download (308.82KB)

Environmental Declaration – 22PF..

Download (71.26KB)
