Belimo 22PF-1UL-1 - DN 100 ultrasonic flow sensor

Belimo 22PF-1UL-1 - DN 100 ultrasonic flow sensor

Belimo
zł8,050.35
VAT included
zł6,545.00 tax excluded

Ultrasonic flow sensor for water systems, DN 100, PN 16, FS 25.0 l/s. Measures flow and temperature; designed for water and water with a maximum of 60% vol. glycol.

AC/DC 24 V supply. Supports BACnet MS/TP, Modbus RTU and MP-Bus, with a configurable voltage output.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo 22PF-1UL-1 – flow sensor

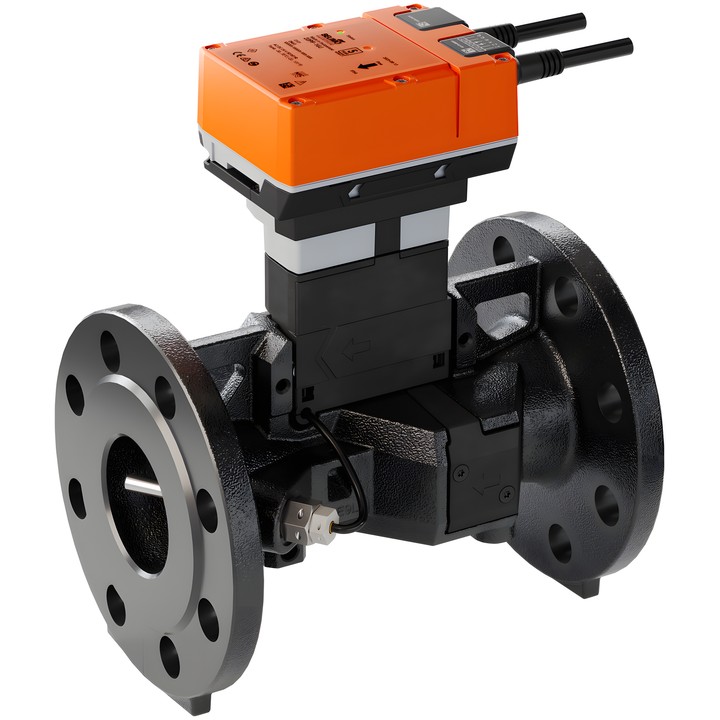

Ultrasonic flow sensor for water systems. Measures flow and temperature and monitors the glycol content in the medium. Flange connection compliant with EN 1092-2.

Key parameters

  • Nominal diameter DN 100 (4 inch); PN 16.
  • FS: 25.0 l/s (90 m³/h); minimum measured flow: 0.7% of FS.
  • Medium: water or water with a maximum of 60% vol. glycol.
  • Supply: AC/DC 24 V; connection with 6x 0.75 mm² cable.
  • Communication: BACnet MS/TP, Modbus RTU, MP-Bus.
  • Voltage output: 1 x 0...10 V, 0.5...10 V, 2...10 V or a user-defined range; factory setting DC 0...10 V.
  • Configuration via NFC using Belimo Assistant 2.
  • Protection rating: IP54 / NEMA 2.

The sensor can be installed in positions ranging from vertical to horizontal, but not suspended. An inlet section of at least 5x DN is required upstream of the sensor to achieve the specified measurement accuracy.

  • Brand
    Belimo
  • Reference
    22PF-1UL-1
  • EAN13
    7630498137037

  • Electrical connection
    Cable
  • Measured values
    Flow Temperature
  • Output signal
    BACnet Modbus MP-Bus 0...10 V
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    DC 0...10 V (factory setting), selectable via NFC, min. resistance 10 kΩ
  • Output voltage range [Range]
    1 x 0...10 V, 0.5...10 V, 2...10 V or user-defined
  • Communication
    BACnet MS/TP Modbus RTU MP-Bus
  • Medium
    Water, water with max. 60% vol. glycol.
  • Valve size
    100 mm | 4 inch
  • Range value
    25.0 l/s

Techniczna karta katalogowa

Download (3.83MB)

Techniczna karta katalogowa – 22PF-1..-1

Download (3.84MB)
