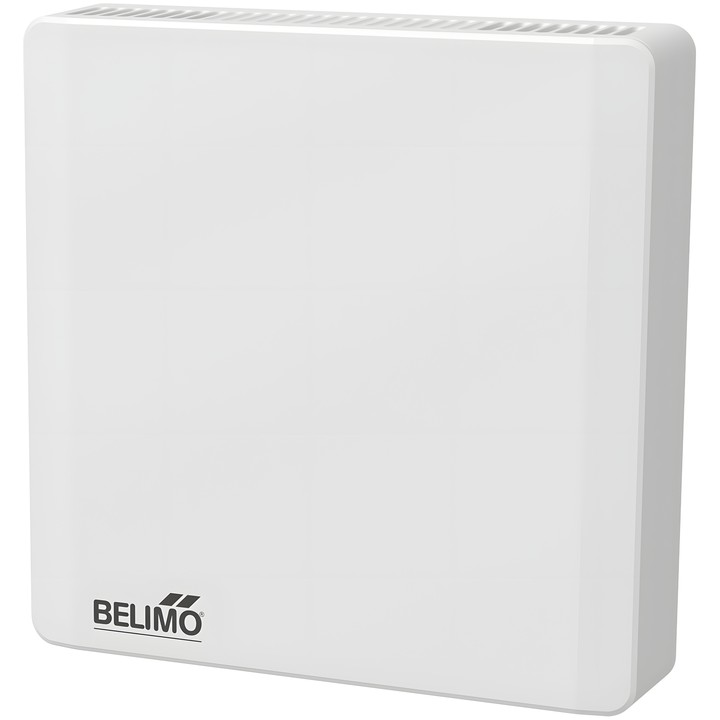

Belimo 22RTH-18-1 - room temperature and humidity sensor

Name: Belimo 22RTH-18-1 - room temperature and humidity sensor
Brand: Belimo
SKU: 22RTH-18-1
Price: 386.96 PLN
Availability: BackOrder

Belimo

zł386.96

VAT included

zł314.60 tax excluded

Belimo 22RTH-18-1 room temperature and humidity sensor with MP-Bus communication and analogue outputs. AC/DC 24 V power supply; available output signals: 0...5 V, 0...10 V, 2...10 V and 4...20 mA.

The device supports NFC, Belimo Assistant 2 for configuration, and Belimo Display App for reading values and changing settings.

Delivery in approx. 14 days

Belimo 22RTH-18-1

Room sensor and setpoint unit for measuring temperature and humidity. The 22RTH-18-1 model enables communication via MP-Bus and provides analogue outputs. Belimo Display App lets you read room values and change settings.

Key features and parameters

Nominal supply voltage: AC/DC 24 V.
Measured values: temperature, relative humidity and dew point.
Temperature measuring range: 0...50°C [32...122°F].
Humidity measuring range: factory setting 0...100% relative humidity.
Communication: MP-Bus; configure the device via NFC using Belimo Assistant 2.
3 analogue outputs; signal 0...10 V (factory setting), 0...5 V, 2...10 V or 4...20 mA, selectable using Belimo Assistant 2.
Belimo Display App is used to display values and change settings.
Electrical connection: spring terminals 0.2...2.5 mm².
IEC/EN protection rating: IP30.
Housing: PC, white, RAL 9003.
