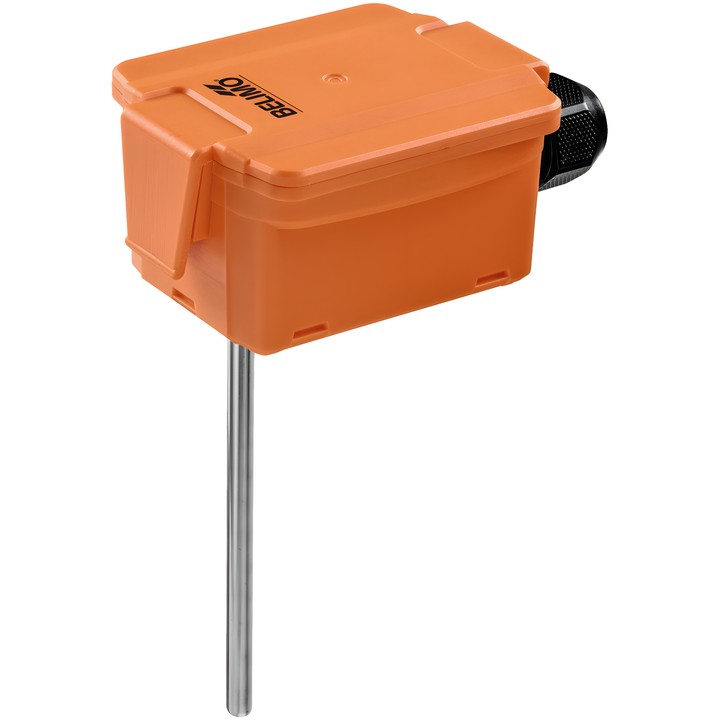

Belimo 01DT-1RR - passive duct/immersion temperature sensor

Belimo 01DT-1RR - passive duct/immersion temperature sensor

Belimo
zł232.47
VAT included
zł189.00 tax excluded

Belimo 01DT-1RR passive temperature sensor with Pt1000 Class AA output signal. The probe is 300 mm long and 6 mm in diameter.

Designed for temperature measurement in ducts; use in pipework requires a stainless steel or brass immersion sleeve. The housing has an IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days
Share

Belimo 01DT-1RR – temperature sensor

Passive sensor for measuring temperature in ducts. With a stainless steel or brass immersion sleeve, it can also be used in pipework.

Key features

  • Output signal: Pt1000 Class AA.
  • Probe length: 300 mm; probe diameter: 6 mm.
  • Measuring range: -50...160°C [-60...320°F].
  • Temperature accuracy: Class AA, ±0.1°C @ 0°C [±0.17°F @ 32° F].
  • Electrical connection: plug-in spring terminal block, max. 2.5 mm².
  • Protection rating: IP65 / NEMA 4X.
  • Probe material: V4A (1.4404).

The package includes a mounting clip with screws and A-22D-A11 adhesive foil. The immersion sleeve is listed in the documentation as an accessory.

  • Brand
    Belimo
  • Reference
    01DT-1RR
  • EAN13
    7630498144776

  • Electrical connection
    Terminals
  • Measured values
    Temperature
  • Output signal
    Pt1000 class AA
  • Passive temperature sensor output
    Pt1000 class AA
  • Probe length
    300 mm

Techniczna karta katalogowa

Download (1.32MB)

Instrukcja montażu

Download (1.19MB)

Techniczna karta katalogowa – 01DT-1R..

Download (1.32MB)

Environmental Declaration – ..DT..

Download (70.29KB)
