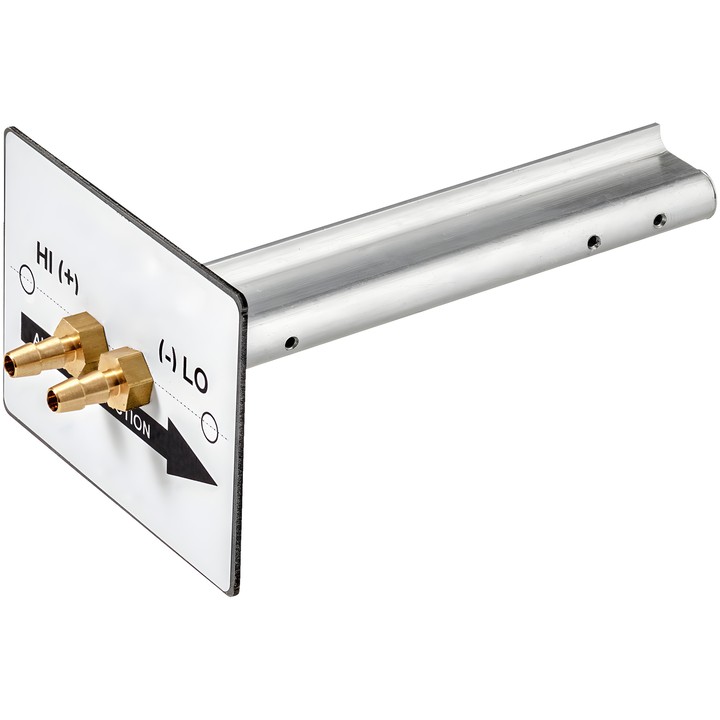

Belimo EXT-AC-R125 - air volume flow measuring probe

Name: Belimo EXT-AC-R125 - air volume flow measuring probe
Brand: Belimo
SKU: EXT-AC-R125
Price: 446.49 PLN
Availability: OutOfStock

Belimo

zł446.49

VAT included

zł363.00 tax excluded

Probe for measuring air volume flow in round ducts, 125 mm long. Compatible with the 22ADP-... differential pressure sensor. Air velocity range in which measurement is possible: 2–25 m/s.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EXT-AC-R125

Probe for measuring air volume flow in round ducts, designed for use in combination with the 22ADP-... differential pressure sensor.

Key data

Probe length: 125 mm.
Air velocity at which measurement is possible: 2–25 m/s.
Medium: air.
Medium temperature: 5...95°C [41...203°F].
Probe material: aluminium.
Dimension B: 15 mm.
Weight: 0.10 kg.

During commissioning, enter the 22ADP-.. differential pressure sensor settings required for correct volume flow measurement: change the fan manufacturer to AirConcepts, set the probe k-factor according to the installation instructions, and adjust the lower and upper volume flow values. Settings can be made using the Belimo Duct Sensor Assistant App or via bus communication.
