Belimo 22UTH-150X - outdoor humidity and temperature sensor

Belimo 22UTH-150X - outdoor humidity and temperature sensor

Belimo
zł1,333.79
VAT included
zł1,084.38 tax excluded

Active air humidity and temperature sensor for outdoor applications. The protective cover shields the sensor from rain and thermal radiation.

Modbus RTU communication, two voltage outputs 0...5 V or 0...10 V, and AC/DC 24 V power supply. Enclosure protection rating IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

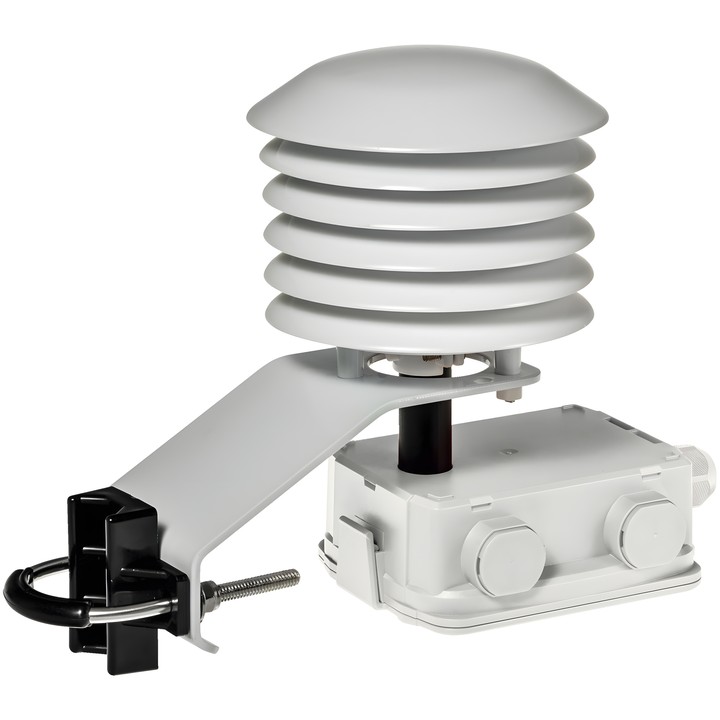

Belimo 22UTH-150X outdoor sensor

Active sensor for measuring outdoor air humidity and temperature. The protective cover protects the sensor from rain and the effects of thermal radiation. The device communicates via Modbus RTU and has two voltage outputs.

Key features and specifications

  • Measured values: relative humidity, absolute humidity, dew point, enthalpy and temperature.
  • Communication: Modbus RTU.
  • Voltage outputs: 2 x 0...5 V, 0...10 V; min. resistance 10 kΩ. Output signal 0...5/10 V adjustable via jumper.
  • Temperature measuring range adjustable via Modbus; factory setting: -20...80°C [-5...175°F].
  • Relative humidity measuring range adjustable via Modbus; factory setting: 0...100% RH.
  • Nominal voltage: AC/DC 24 V; voltage range: AC 19...29 V / DC 15...35 V.
  • Electrical connection: removable spring terminal block, max. 2.5 mm².
  • Enclosure protection rating: IP65 / NEMA 4X.

  • Brand
    Belimo
  • Reference
    22UTH-150X
  • EAN13
    7630498118050

  • Electrical connection
    Terminals
  • Measured values
    Temperature Humidity
  • Output signal
    Modbus 0...5 V 0...10 V
  • Humidity measuring range
    Adjustable via Modbus Factory setting: 0...100% RH
  • AC/DC voltage
    AC/DC 24 V
  • Temperature measuring range
    Adjustable via Modbus -20...80°C [-5...175°F]
  • Active sensor output note
    Output signal 0...5/10 V adjustable via jumper
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU

Techniczna karta katalogowa

Download (3.19MB)

Instrukcja montażu

Download (1005.65KB)

Techniczna karta katalogowa – 22UTH-150X

Download (3.19MB)

EU Declaration of Conformity – 22UTH-150X

Download (39.83KB)

Environmental Declaration – 22UTH..X

Download (70.47KB)
