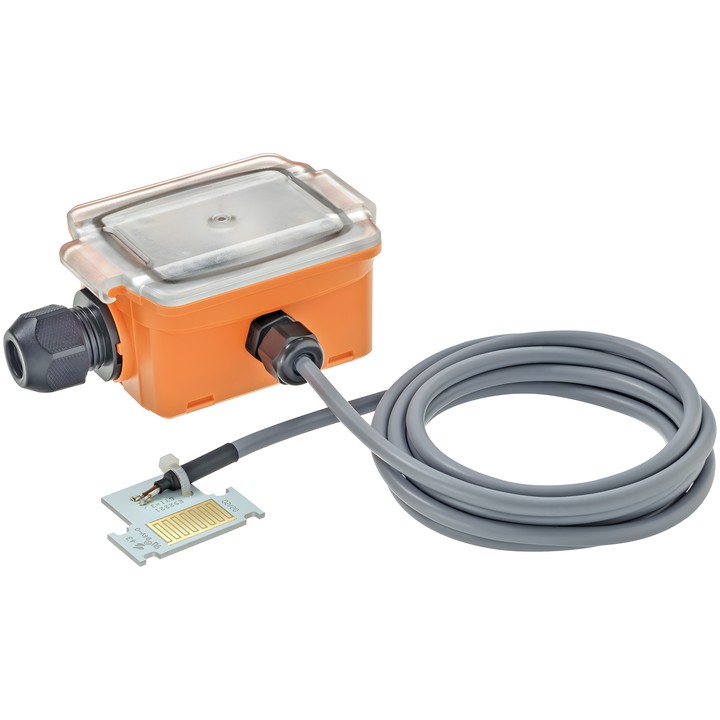

Belimo 22HH-100S-7 - condensation switch with external sensor

Belimo 22HH-100S-7 - condensation switch with external sensor

Belimo
zł880.07
VAT included
zł715.50 tax excluded

Condensation switch with an external sensor and a 12 m cable. Detects condensation on chilled surfaces. AC/DC 24 V supply, potential-free SPDT changeover contact and LED indication.

Delivery in approx. 14 days
Share

Belimo 22HH-100S-7 condensation switch

The device detects condensation on chilled surfaces, e.g. cooling beams. The relay contact enables connection to a controller or display system, or series connection with a cooling valve to interrupt the cold-water flow when condensation begins.

Key features and specifications

  • External sensor with a 12 m cable.
  • Nominal voltage: AC/DC 24 V; range: AC 21.6...26.4 V / DC 13.5...26.4 V.
  • Power consumption: 1.6 VA (AC) / 0.8 W (DC).
  • SPDT changeover contact, potential-free; max. AC/DC 24 V / 1 A.
  • LEDs: green indicates correct power supply, red indicates condensation.
  • Adjustable condensation detection sensitivity.
  • Electrical connection: pluggable spring terminal block, max. 2.5 mm².
  • Degree of protection: IP65 / NEMA 4X.
  • Ambient temperature: -20...50°C; medium temperature: -20...60°C.

  • Brand
    Belimo
  • Reference
    22HH-100S-7
  • EAN13
    7630498117954

  • Electrical connection
    Terminals
  • Measured values
    Condensation
  • Output signal
    Switch
  • AC/DC voltage
    AC/DC 24 V
  • Display type
    LED

Techniczna karta katalogowa

Download (1.74MB)

Instrukcja montażu

Download (990.22KB)

Techniczna karta katalogowa – 22HH-100S-..

Download (1.74MB)

EU Declaration of Conformity – 22HH-100S-7

Download (38.01KB)

Environmental Declaration – 22HH..

Download (70.55KB)
