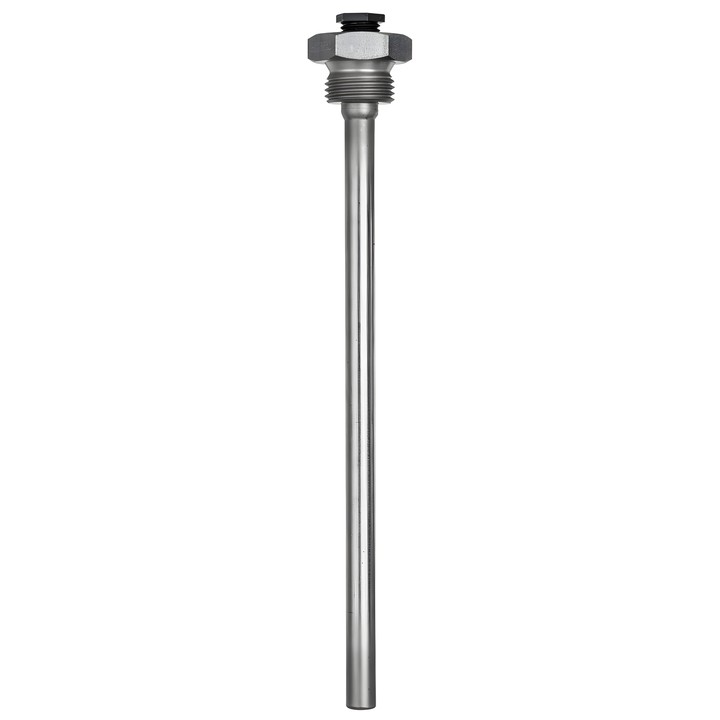

Belimo A-22P-A12 - immersion pocket for temperature sensor

Name: Belimo A-22P-A12 - immersion pocket for temperature sensor
Brand: Belimo
SKU: A-22P-A12
Price: 124.13 PLN
Availability: BackOrder

Belimo

zł124.13

VAT included

zł100.92 tax excluded

Stainless steel immersion pocket for installing immersion and cable temperature sensors 01DT.., 22DT.., 01CT.. and 22CT... The pocket is 200 mm long, has a diameter of 9 mm and features a G 1/2" male thread.

Delivery in approx. 14 days

Belimo A-22P-A12 – immersion pocket

Stainless steel pocket with a G 1/2" male thread and integrated compression fitting, designed for installing immersion and cable temperature sensors 01DT.., 22DT.., 01CT.. and 22CT...

Key features and specifications

Pocket length: 200 mm; pocket diameter: 9 mm.
Male thread: G 1/2"; SW27 size.
Maximum flow velocity for A-22P-A12: 5.4 m/s.
Medium: water or a water-glycol mixture; PN 40.
Medium temperature: up to max. 200°C.
Pocket materials: turned part V4A (1.4404), tube V4A (1.4571); compression screw: polyamide (PA66/GF25).
Weight: 0.094 kg.
