Belimo A-22P-A24 - brass pocket for temperature sensor

Belimo A-22P-A24 - brass pocket for temperature sensor

Belimo
zł68.02
VAT included
zł55.30 tax excluded

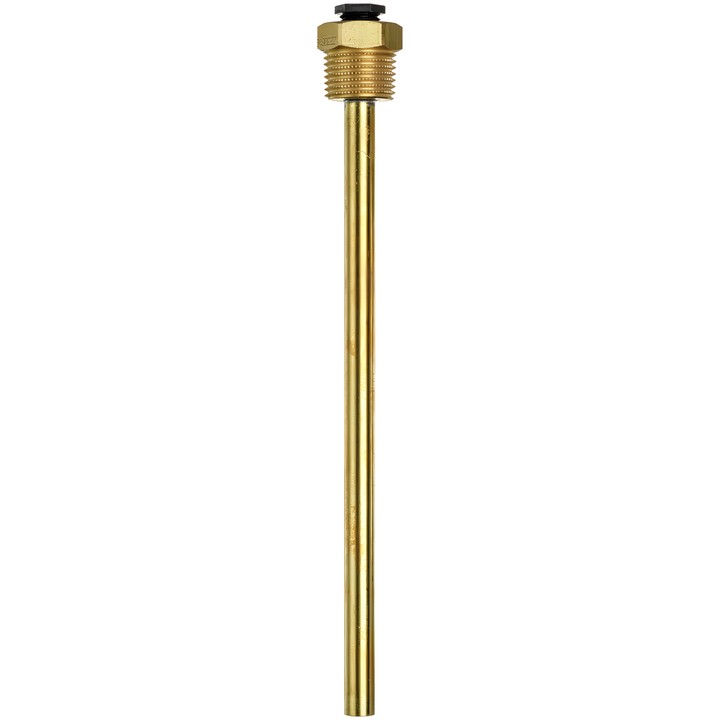

Brass pocket for mounting a temperature sensor, 200 mm long, 9 mm in diameter and with an R 1/2" male thread. Fitted with an integrated mounting clamp.

Delivery in approx. 14 days
Share

Belimo A-22P-A24 brass pocket

Pocket with an R 1/2" male thread and integrated mounting clamp, designed for immersion and cable sensors 01DT.., 22DT.., 01CT.., 22CT...

Key features and technical data

  • Pocket length: 200 mm; diameter: 9 mm; SW22.
  • Max. flow velocity: 4.0 m/s; PN: 16.
  • Medium: water, water-glycol mixture.
  • Medium temperature: max. 130°C.
  • Pocket material: turned part CW614N (2.0401), tube CW508L (2.0321); clamping screw: polyamide (PA66/GF25).
  • Weight: 0.092 kg.

  • Brand
    Belimo
  • Reference
    A-22P-A24
  • EAN13
    7630498101762

Techniczna karta katalogowa

Download (557.09KB)

Techniczna karta katalogowa – A-22P-A.. R MS

Download (544.32KB)
