Belimo A-22P-A66 - temperature sensor pocket set

Belimo A-22P-A66 - temperature sensor pocket set

Belimo
zł158.33
VAT included
zł128.72 tax excluded

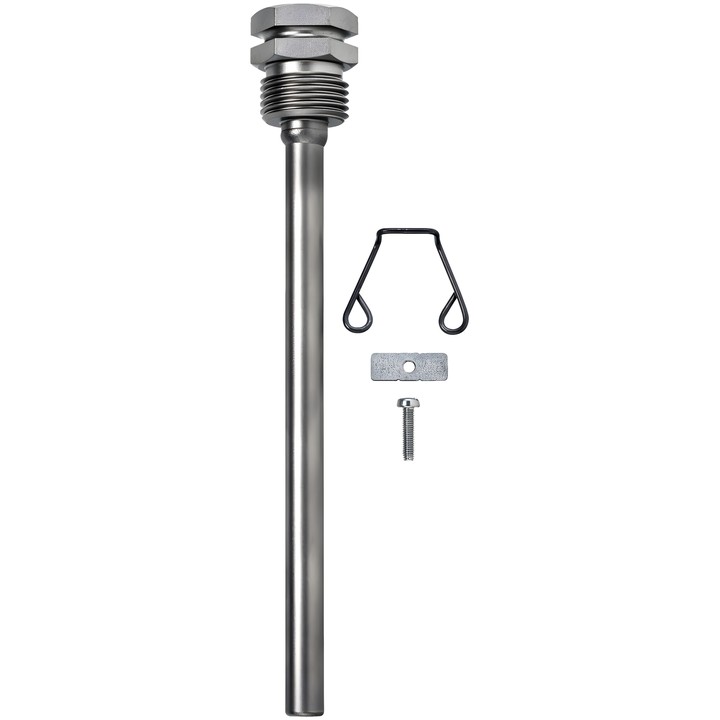

Stainless steel pocket set, 200 mm long and 8 mm in diameter, with a G 1/2" connection. Includes probe mounting material for safety temperature limiter 01HT-1..C and temperature monitor 01HT-1..A.

Delivery in approx. 14 days
Share

Belimo A-22P-A66 – temperature sensor pocket set

Stainless steel pocket designed for use with water. The set includes probe mounting material for safety temperature limiter 01HT-1..C and temperature monitor 01HT-1..A.

Key technical data

  • Pocket length: 200 mm; pocket diameter: 8 mm.
  • Connection: G 1/2"; spanner size: SW22.
  • Max. flow velocity: 4.3 m/s.
  • Medium: water; liquid temperature: up to max. 200°C.
  • Pocket material: turned part and tube – V4A (1.4571).
  • Weight: 0.10 kg.

The technical data sheet specifies CE marking and the ISO 9001 quality standard.

  • Brand
    Belimo
  • Reference
    A-22P-A66
  • EAN13
    7630498118241

Techniczna karta katalogowa

Download (688.14KB)
