Air differential pressure sensor with Auto-Zero function, Modbus RTU communication and 0...5 V, 0...10 V outputs. Measuring range: -150...250 Pa; 8 selectable measuring ranges are available.

AC/DC 24 V power supply. The sensor measures differential pressure and volumetric flow; the housing has an IP65 / NEMA 4X protection rating.

Delivery in approx. 14 days
Share

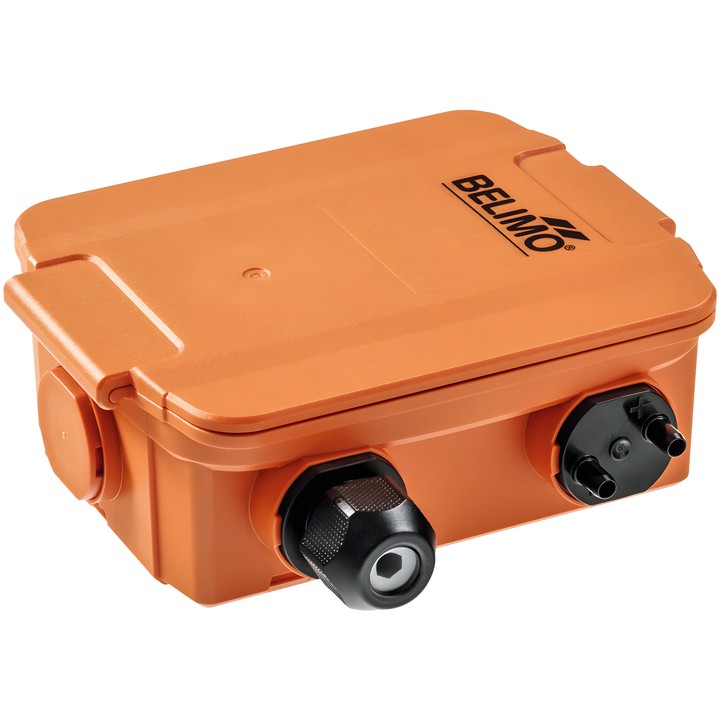

Belimo 22ADP-15QA air differential pressure sensor

The 22ADP-15QA measures the differential pressure of air and other non-aggressive gases. It also provides a volumetric flow value calculated from differential pressure, the k-factor and altitude above sea level.

Key features

  • Pressure measuring range: -150...250 Pa (-0.6...1 inch WC); 8 selectable measuring ranges.
  • Auto-Zero function.
  • Modbus RTU communication and 2 voltage outputs: 0...5 V, 0...10 V; the 0...5/10 V signal is selectable via a switch. Minimum load resistance: 10 kΩ.
  • Nominal voltage: AC/DC 24 V.
  • Electrical connection: plug-in spring terminal block, max. 2.5 mm².
  • Housing protection rating: IP65 / NEMA 4X.
  • Included: mounting plate, mounting kit, 2 plastic duct connections and 2 m PVC tubing.

  • Brand
    Belimo
  • Reference
    22ADP-15QA
  • EAN13
    7630498117787

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure Volume flow
  • Output signal
    Modbus 0...5 V 0...10 V
  • Pressure measuring range
    -150...250 Pa | -0.6...1 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU
