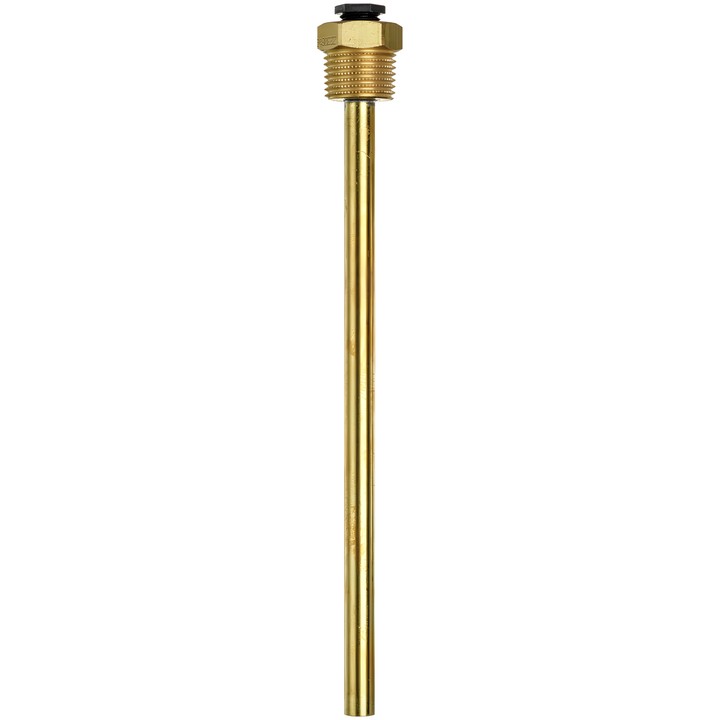

Belimo A-22P-A28 - brass thermowell for temperature sensor

Belimo A-22P-A28 – thermowell for temperature sensor

Brass thermowell with R 1/2" male thread and integrated compression fitting, designed for immersion and cable sensors 01DT.., 22DT.., 01CT.., 22CT...

Key features and specifications

• Thermowell length: 450 mm; thermowell diameter: 9 mm.
• Male thread: R 1/2"; SW22 size.
• Maximum flow velocity: 0.7 m/s.
• Medium: water or a water-glycol mixture.
• PN: 16; medium temperature: up to max. 130°C.
• Material of turned part: CW614N (2.0401); tubes: CW508L (2.0321); pressure screw: polyamide (PA66/GF25).
• Weight: 0.14 kg.
