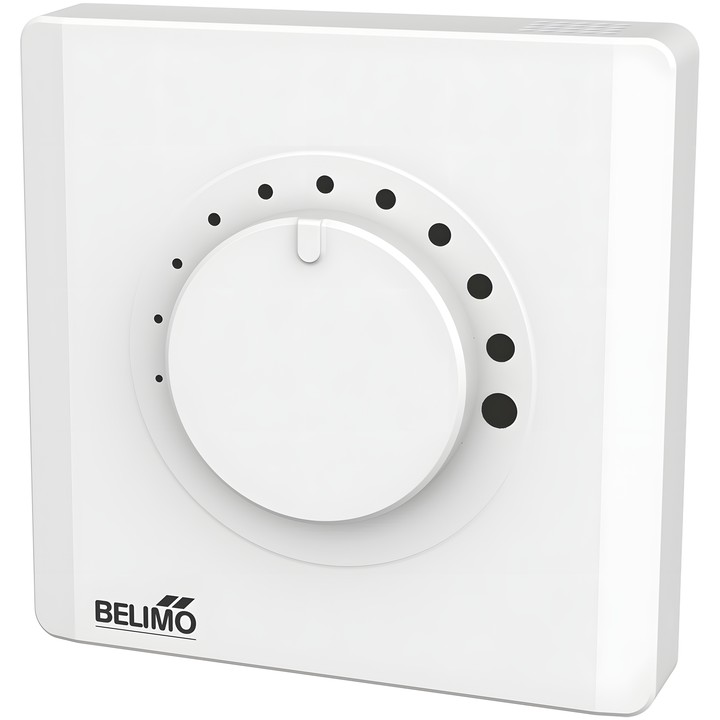

Belimo P-01RT-1M-0 - passive room temperature setpoint adjuster

Belimo P-01RT-1M-0

Room temperature setpoint adjuster with a passive sensor, designed to measure room temperature and set the temperature setpoint.

Key features

• Output signal: NTC10k Pre (10k3).
• Potentiometer: 2.5...8.5 kΩ; typical accuracy: ±15%.
• Temperature measuring range: 0...50°C [32...122°F].
• Temperature accuracy for NTC..: ±0.2°C @ 25°C [±0.35°F @ 77°F].
• Measuring current for NTC10k Pre (10k3): <2.7 mA @ 25°C [77°F].
• Electrical connection: spring terminal 0.5...1.5 mm².
• IEC/EN protection rating: IP30; IEC/EN protection class: III, Protective Extra-Low Voltage (PELV).
• Housing: PC, white, RAL 9003; dimensions 86x86x16.5 mm (HxWxD).

When using long connection cables, their resistance must be taken into account. The device is intended for stationary heating, ventilation and air-conditioning installations.
