Belimo A-22P-A65 - stainless steel sensor pocket set

Belimo A-22P-A65 - stainless steel sensor pocket set

Belimo
zł116.54
VAT included
zł94.75 tax excluded

Belimo A-22P-A65 is a stainless steel pocket set with a length of 150 mm, a diameter of 8 mm and a G 1/2" connection. It includes sensor mounting material.

Designed for the 01HT-1..C safety temperature limiter and the 01HT-1..A temperature sensor. The maximum flow velocity for this variant is 5.8 m/s.

Delivery in approx. 14 days
Share

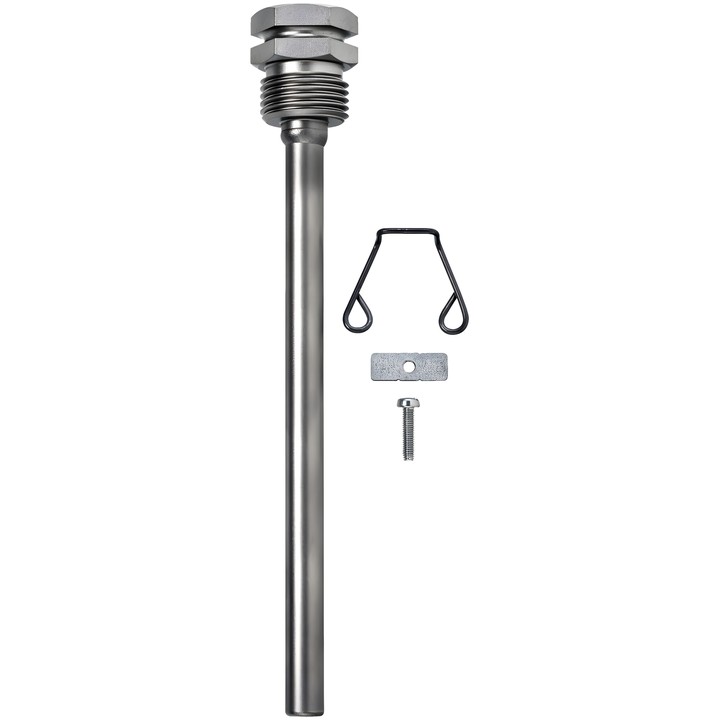

Belimo A-22P-A65 pocket set

A pocket for mounting a temperature sensor, made of stainless steel. The set includes sensor mounting material for the 01HT-1..C safety temperature limiter and the 01HT-1..A temperature sensor.

Confirmed features

  • Pocket length: 150 mm; pocket diameter: 8 mm.
  • Connection: G 1/2"; size SW22.
  • Maximum flow velocity: 5.8 m/s.
  • Medium: water; medium temperature: up to max. 200°C.
  • Pocket material: turned part and tube made of V4A steel (1.4571).
  • Weight: 0.092 kg.
  • CE marking; ISO 9001 quality standard.

  • Brand
    Belimo
  • Reference
    A-22P-A65
  • EAN13
    7630498118234

Techniczna karta katalogowa

Download (688.14KB)
