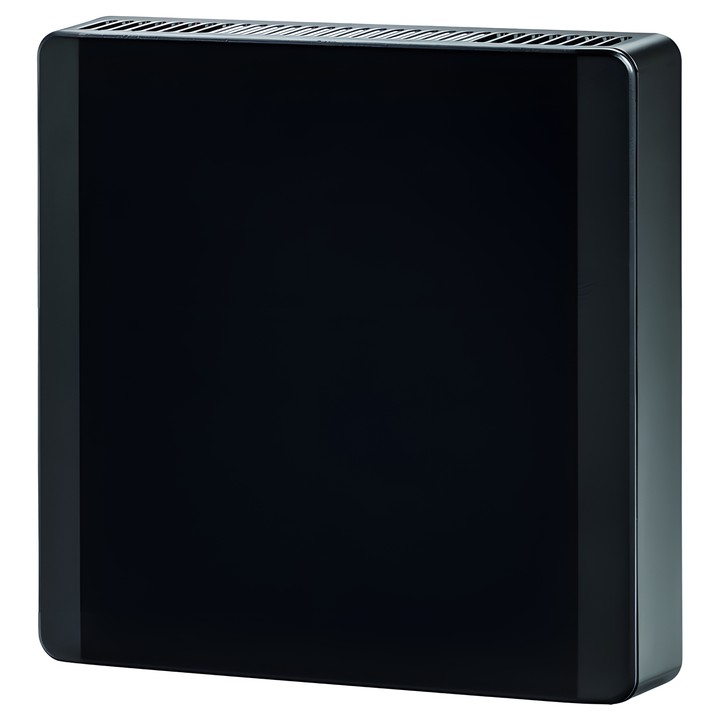

Belimo P-22RTH-1U00A-2B - room temperature and humidity sensor

Name: Belimo P-22RTH-1U00A-2B - room temperature and humidity sensor
Brand: Belimo
SKU: P-22RTH-1U00A-2B
Price: 928.04 PLN
Availability: BackOrder

Belimo

zł928.04

VAT included

zł754.50 tax excluded

Active room sensor for measuring temperature and humidity, with Modbus RTU, BACnet MS/TP and MP-Bus communication. Enables readings and setpoint adjustment via the Belimo Display App using NFC.

AC/DC 24 V supply, temperature measuring range 0...50°C [32...122°F] and humidity 0...100% RH. Black polycarbonate housing, RAL 9004.

Delivery in approx. 14 days

Belimo P-22RTH-1U00A-2B room sensor

Active sensor for measuring room temperature and humidity. According to the type table for P-22RTH-1U00A-2B, dew point measurement and temperature and volumetric flow setpoints are also available. The device is intended for stationary heating, ventilation and air-conditioning installations.

Key features and specifications

Measured values: temperature, humidity and dew point.
Temperature measuring range: 0...50°C [32...122°F]; temperature measurement accuracy: ±0.3°C @ 25°C [±0.5°F @ 77°F].
Humidity measuring range: 0...100% RH; dew point measuring range: -50...50°C [-60...120°F].
Communication: Modbus RTU, BACnet MS/TP, MP-Bus.
1 digital input for a volt-free contact.
Belimo Display App for reading room values and adjusting setpoints; connectivity via NFC. Parameterisation using Belimo Assistant 2.
Rated voltage: AC/DC 24 V; electrical connection: spring terminal 0.2...2.5 mm².
Housing: polycarbonate, black, RAL 9004; housing protection class IEC/EN: IP30.
