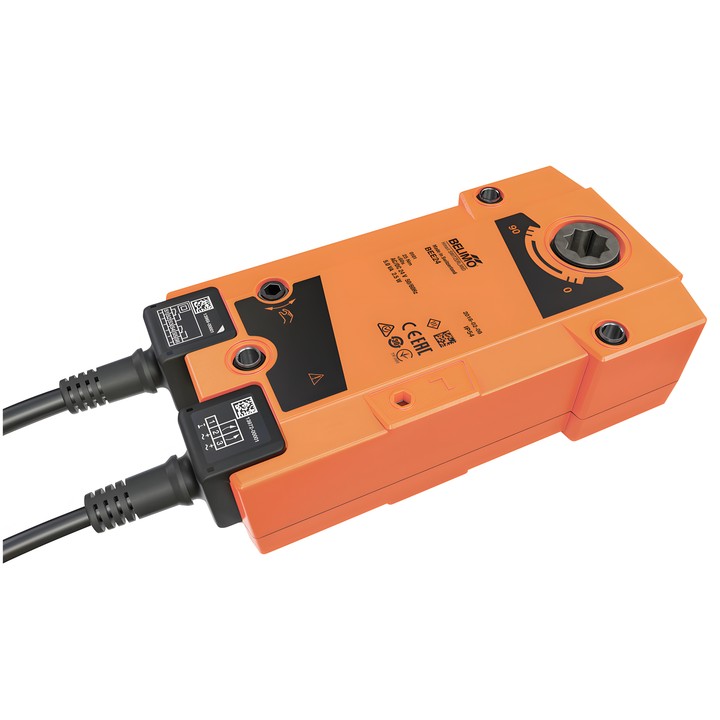

Belimo BEE24 - actuator for fire dampers

Belimo BEE24 - actuator for fire dampers

Belimo
zł1,905.27
VAT included
zł1,549.00 tax excluded

Belimo BEE24 actuator for fire dampers with 25 Nm torque, AC/DC 24 V supply and Close/Open control. Motor running time is <60 s / 90°.

Equipped with a 12x12 mm form-fit connection with a continuous hollow shaft, two auxiliary switches 2x SPDT and manual override by crank.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo BEE24 – actuator for fire dampers

Actuator with two-wire Close/Open control, mechanical Safety Position Lock™ and position indicator.

Key specifications

  • Motor torque: 25 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
  • Motor running time: <60 s / 90°; maximum rotation angle: 95°.
  • Auxiliary switches: 2x SPDT; switching points: 5° / 80°.
  • 12x12 mm form-fit connection, continuous hollow shaft.
  • Power consumption during operation: 2.5 W; at rest: 0.1 W; for cable sizing: 5 VA.
  • Power and control connection: 1 m cable, 3x 0.75 mm², FRNC (halogen-free); auxiliary switch connection: 1 m cable, 6x 0.75 mm², FRNC (halogen-free).
  • Degree of protection: IP54; ambient temperature: -30...55°C [-22...131°F].
  • Direction of movement selected by the mounting method; manual override by crank.

Supplied with: crank, position indicator and protective bag. According to the documentation, the actuator is adapted and mounted on the damper by its manufacturer and supplied directly to manufacturers of safety dampers.

  • Brand
    Belimo
  • Reference
    BEE24
  • EAN13
    7630498118425

  • AC/DC voltage
    AC/DC 24 V
  • Auxiliary switch connection
    Cable 1 m, 6x 0.75 mm², FRNC (halogen-free)
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    0.1 W
  • Rated power
    5 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm², FRNC (halogen-free)
  • Control type
    Close/Open
  • Protection rating
    IP54
  • Manual override
    With crank
  • Running time (motor)
    ＜60 s / 90°
  • Ambient temperature
    -30...55°C [-22...131°F]
  • Auxiliary contacts
    2x SPDT
  • Torque
    25 Nm
  • Direction of movement - motor
    Selectable by mounting
  • Rotational angle
    95°
  • Mechanical connection
    Form-fit connection 12x12 mm, through hollow shaft

Techniczna karta katalogowa

Download (1.02MB)

Instrukcja montażu

Download (1.31MB)

Techniczna karta katalogowa – BEE24

Download (1.03MB)

EU Declaration of Conformity – BEE24

Download (32.95KB)

Environmental Declaration – BEE..

Download (72.01KB)
