Belimo LM24A-MP-TP - rotary actuator for dampers

Belimo LM24A-MP-TP - rotary actuator for dampers

Belimo
zł674.30
VAT included
zł548.21 tax excluded

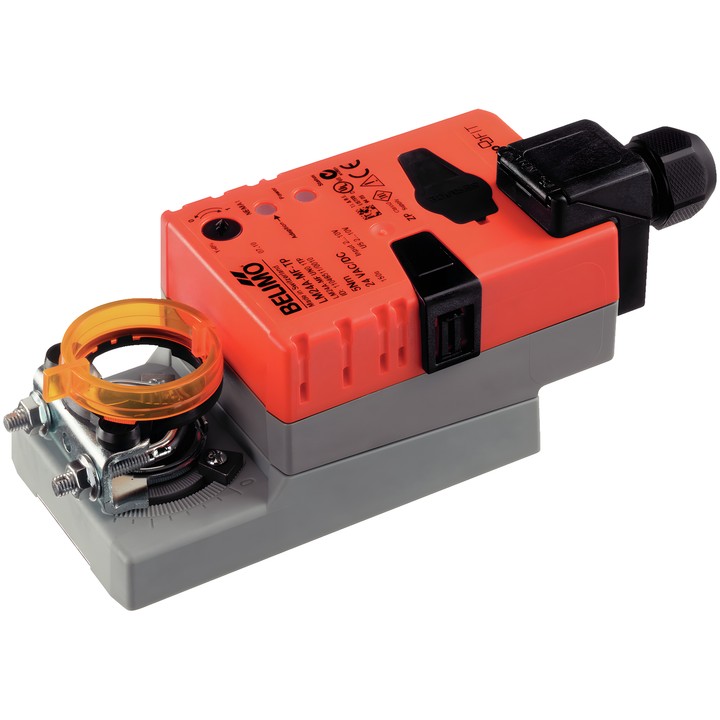

Belimo LM24A-MP-TP rotary actuator for dampers with a torque of 5 Nm, powered by AC/DC 24 V. Supports 2...10 V modulating control and MP-Bus communication.

Running time is 150 s / 90°, and the protection rating is IP54. The actuator has a universal clamp for 6...20 mm shafts and terminal electrical connection.

Delivery in approx. 14 days
Share

Belimo LM24A-MP-TP – actuator for dampers

Communicating rotary actuator for positioning dampers in building technical systems. According to the documentation, it is intended for air dampers with an area of up to approx. 1 m². It can operate with an analogue control signal or receive a digital control signal via MP-Bus.

Key features and specifications

  • Torque: 5 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Operating range Y: 2...10 V; feedback U: 2...10 V. In MP-Bus mode, the U connection serves as a communication interface and does not provide an analogue measurement voltage.
  • Communication: MP-Bus; the connected sensor signal can be converted for transmission via MP-Bus.
  • Motor running time: 150 s / 90°; adjustable running time: 35...150 s.
  • Rotation angle: max. 95°, with the option of limiting it on both sides using mechanical stops.
  • Rotation direction selected by 0/1 switch; manual adjustment using a pushbutton, with the option to lock it.
  • Universal clamp for 6...20 mm shaft; power and control connection: 4 mm² terminals (ø4...10 mm cable, 4-core).
  • Power consumption during operation: 2.5 W; at rest: 1.3 W; value for cable sizing: 5 VA.
  • IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LM24A-MP-TP
  • EAN13
    7630498112287

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    1.3 W
  • Rated power
    5 VA
  • Power supply control connection
    4 mm² terminals (ø4...10 mm cable, 4-core)
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Variable motor running time
    35...150 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm

Techniczna karta katalogowa

Download (2.22MB)

Instrukcja montażu

Download (507.43KB)

Techniczna karta katalogowa – LM24A-MP-TP

Download (2.23MB)

EU Declaration of Conformity – LM24A-MP-TP

Download (32.8KB)

Environmental Declaration – LM..

Download (72.46KB)
