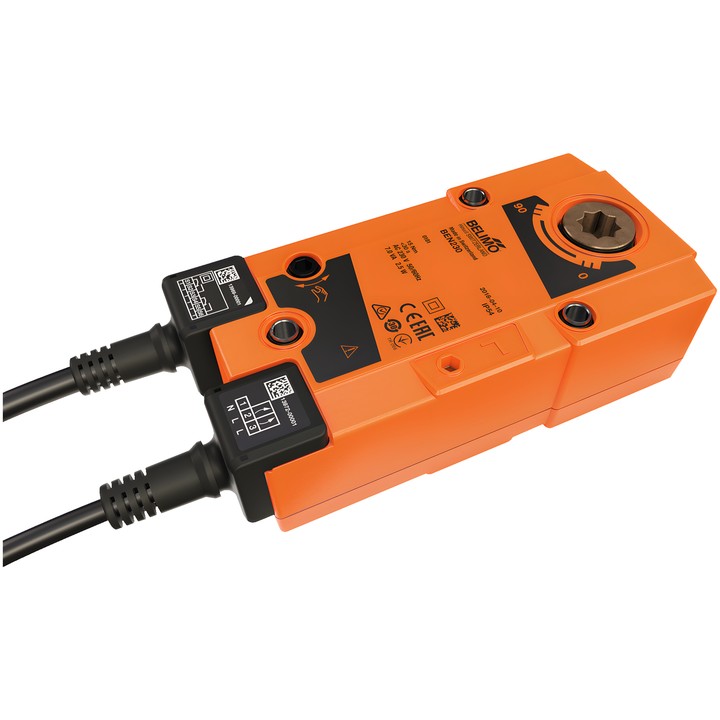

Belimo BEN230 - actuator for fire and smoke dampers

Name: Belimo BEN230 - actuator for fire and smoke dampers
Brand: Belimo
SKU: BEN230
Price: 1900.35 PLN
Availability: OutOfStock

Belimo

zł1,900.35

VAT included

zł1,545.00 tax excluded

Belimo BEN230 is an actuator for fire and smoke dampers with a torque of 15 Nm and an AC 230 V supply. It operates in Close/Open mode; motor running time is <30 s / 90°.

Equipped with a 12x12 mm form-fit connection with a through hollow shaft, 2x SPDT and a crank for manual adjustment.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo BEN230 actuator

BEN230 is an actuator for fire and smoke dampers. It is controlled in Close/Open mode, and the direction of movement can be selected during installation. The mechanical Safety Position Lock™ holds the damper in a defined safety position in the event of a fire.

Key specifications and features

Motor torque: 15 Nm; running time: <30 s / 90°.
Rated voltage: AC 230 V; frequency: 50/60 Hz.
Power consumption during operation: 4 W; in standby position: 0.4 W; wire sizing power: 7 VA.
Auxiliary switches: 2x SPDT, switching points 5° / 80°.
Mechanical connection: 12x12 mm form-fit connection, through hollow shaft.
Maximum rotation angle: 95°; mechanical position indicator.
Manual adjustment using a crank; IEC/EN protection rating: IP54.
Ambient temperature: -30...55°C [-22...131°F].

Power and control connection: 1 m cable, 3x 0.75 mm², FRNC (halogen-free). Auxiliary switch connection: 1 m cable, 6x 0.75 mm², FRNC (halogen-free). A crank, indicator and protective bag are included.

The actuator is adapted and installed on the damper by the damper manufacturer; according to BELIMO documentation, it is supplied directly to manufacturers of safety dampers.
