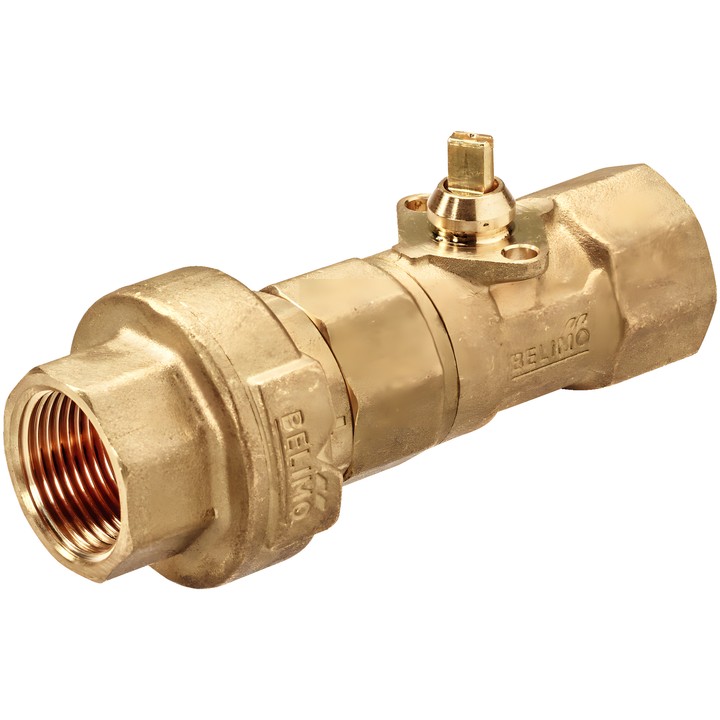

Belimo C215QFLH-C - 2-way PI flow limiter valve

Name: Belimo C215QFLH-C - 2-way PI flow limiter valve
Brand: Belimo
SKU: C215QFLH-C
Price: 608.85 PLN
Availability: OutOfStock

Belimo

zł608.85

VAT included

zł495.00 tax excluded

Belimo C215QFLH-C is a 2-way PI flow limiter valve for closed-loop water systems. It has an Rp 1/2" female threaded connection, DN 15, PN 25 and a nominal flow rate of V'nom 290 l/h.

Designed for on/off control on the water side of fan coil units and heating and cooling ceilings. Fluid temperature: 2...80°C [36...176°F].

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo C215QFLH-C – PI flow limiter valve

2-way valve for closed-loop water systems. The integrated limiter maintains a constant flow rate at a differential pressure of 20...280 kPa when the valve is open at an angle of 90°. The valve is designed for on/off control on the water side of fan coil units and heating and cooling ceilings.

Key features and specifications

Type: C215QFLH-C; design: 2-way.
DN 15, PN 25; connection: Rp 1/2" female thread.
Nominal flow rate: V'nom 290 l/h (0.08 l/s; 0.29 m³/h).
Fluid: water; fluid temperature: 2...80°C [36...176°F].
Differential pressure: ∆p 20...280 kPa; closing pressure: 520 kPa.
50 kPa to ensure quiet operation.
Leak-tightness: bubble-tight, leakage rate class A (EN 12266-1).
Valve body: brass; closure element: chrome-plated brass.
Rotation angle: 90°; permitted mounting position: from vertical to horizontal, relative to the spindle.

Observe the flow direction indicated by the arrow on the body. Installation in a suspended position, with the spindle pointing downwards, is not permitted.
