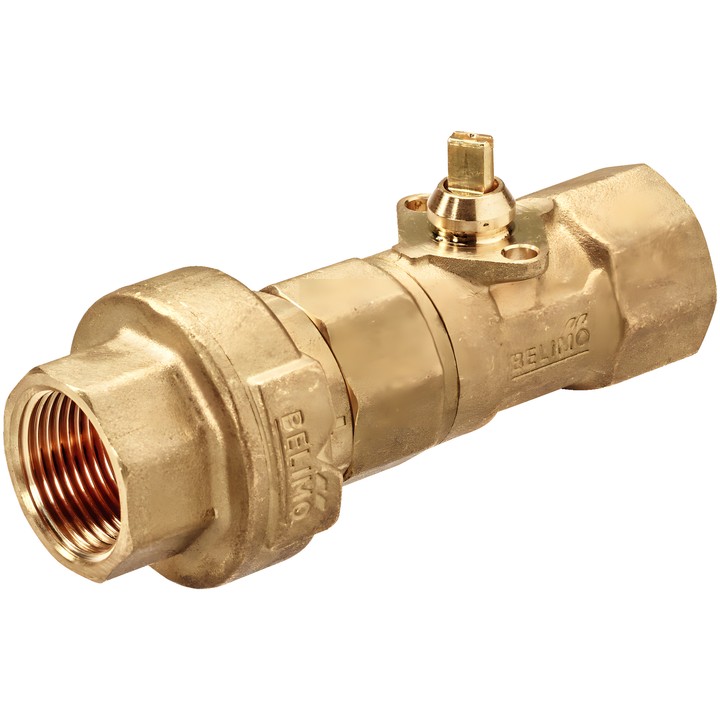

Belimo C215QFLH-D - 2-way PI flow limiter valve

Name: Belimo C215QFLH-D - 2-way PI flow limiter valve
Brand: Belimo
SKU: C215QFLH-D
Price: 608.85 PLN
Availability: OutOfStock

Belimo

zł608.85

VAT included

zł495.00 tax excluded

2-way PI flow limiter valve (PIFLV) for water systems. DN 15, Rp 1/2" female thread, PN 25 and V'nom 470 l/h.

Fluid temperature: 2...80°C [36...176°F]. Differential pressure range: ∆p 20...280 kPa.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo C215QFLH-D – PI flow limiter valve

2-way valve for closed water systems, designed for on/off control on the water side of fan coil units and heating and cooling ceilings. The integrated limiter maintains a constant flow rate at a differential pressure of 20...280 kPa when the valve is open at an angle of 90°.

Key technical data

Type: C215QFLH-D; DN 15; PN 25.
Connection: Rp 1/2" female thread in accordance with ISO 7-1.
Nominal flow V'nom: 470 l/h (0.13 l/s; 0.47 m³/h).
Fluid: water; fluid temperature: 2...80°C [36...176°F].
Differential pressure: ∆p 20...280 kPa; closing pressure: 520 kPa.
Recommended differential pressure for quiet operation: 50 kPa.
Tightness: bubble-tight, leakage rate class A (EN 12266-1).
Body and stem: brass; closing element: chrome-plated brass.
Rotation angle: 90°; permissible installation position: from vertical to horizontal relative to the stem.

Maintain the flow direction indicated by the arrow on the body. Installation with the stem pointing downwards is not permitted.
