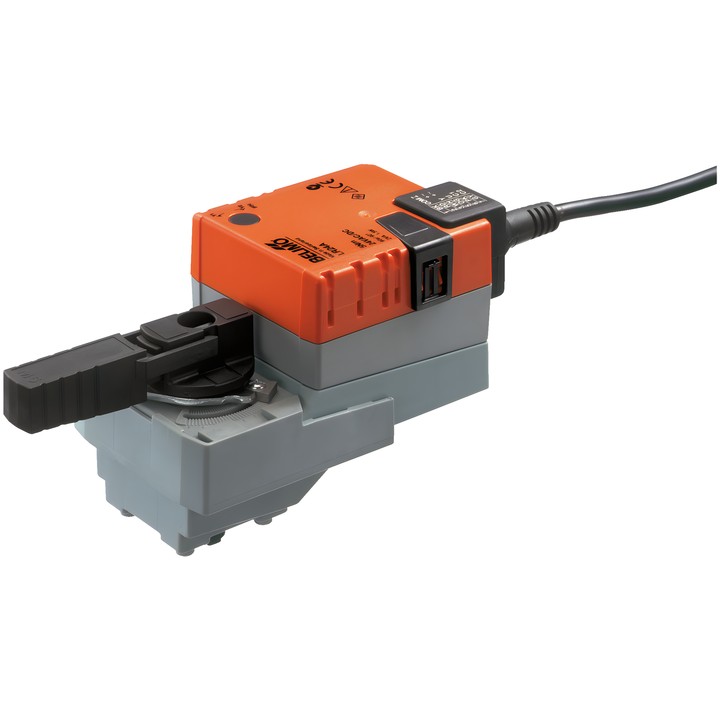

Belimo LR24A - rotary actuator for ball valves

Belimo LR24A - rotary actuator for ball valves

Belimo
zł519.18
VAT included
zł422.10 tax excluded

Belimo LR24A rotary actuator for ball valves, powered by AC/DC 24 V. Torque 5 Nm, On/Off or 3-point control, and running time 90 s / 90°.

Features push-button manual override, mechanical adjustment of the rotation angle, and a position indicator. IEC/EN protection rating IP54.

Delivery in approx. 14 days
Share

Belimo LR24A rotary actuator

LR24A is a rotary actuator for ball valves. It supports On/Off or 3-point control. Direct mounting on the valve is performed using a single central screw.

Main specifications and features

  • Torque: 5 Nm.
  • Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
  • Rated voltage range: AC 19.2...28.8 V / DC 19.2...28.8 V.
  • Running time: 90 s / 90°.
  • Power consumption during operation: 1.5 W; at rest: 0.2 W; for wire sizing: 2 VA.
  • Power and control connection: 1 m cable, 3x 0.75 mm².
  • Push-button manual override with lock; adjustable rotation angle with mechanical end stops.
  • Mechanical, plug-in position indicator.
  • IEC/EN protection rating IP54; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C.

  • Brand
    Belimo
  • Reference
    LR24A
  • EAN13
    7630498112515

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    2 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2

Techniczna karta katalogowa

Download (1.01MB)

Instrukcja montażu

Download (630.54KB)

EU Declaration of Conformity – LR24A

Download (32.71KB)

Environmental Declaration – LR..

Download (72.66KB)
