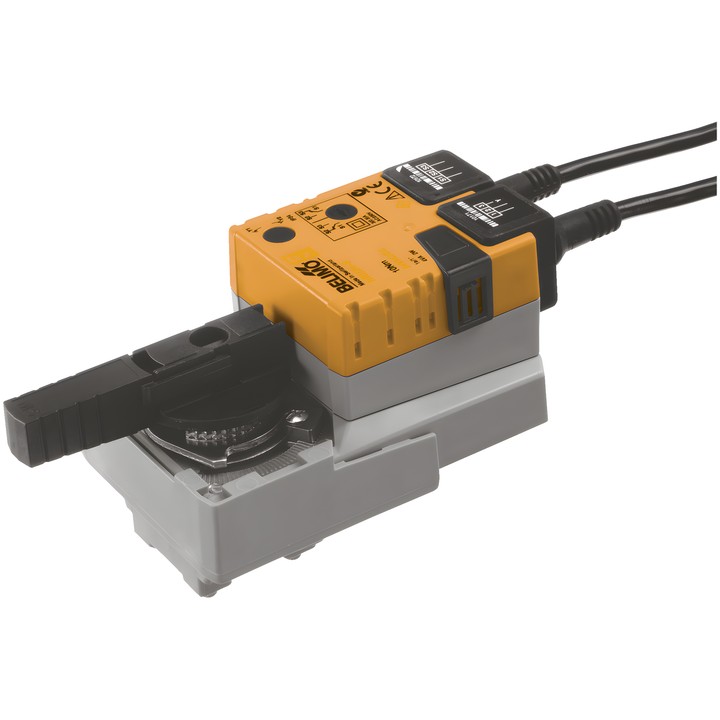

Belimo NR230A-S - rotary actuator for ball valves

Name: Belimo NR230A-S - rotary actuator for ball valves
Brand: Belimo
SKU: NR230A-S
Price: 804.32 PLN
Availability: BackOrder

Belimo

zł804.32

VAT included

zł653.92 tax excluded

Belimo NR230A-S rotary actuator for ball valves, with a torque of 10 Nm and a nominal voltage of AC 100...240 V. Supports Close/Open and 3-point control; running time is 90 s / 90°.

Equipped with a 1x SPDT auxiliary switch with 0...100% setting, push-button manual override and a mechanical position indicator. IEC/EN degree of protection: IP54.

Delivery in approx. 14 days

Belimo NR230A-S – rotary actuator for ball valves

Actuator with an integrated 1x SPDT auxiliary switch. The rotation angle can be set using mechanical stops, and the actuator is mounted on the ball valve with a single central screw.

Key features and specifications

Motor torque: 10 Nm.
Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Close/Open, 3-point.
Motor running time: 90 s / 90°.
Auxiliary switch: 1x SPDT, 0...100%.
Power consumption during operation: 3 W; at rest: 0.6 W; for cable sizing: 7 VA.
Power and control connection, and auxiliary switch connection: 1 m cable, 3x 0.75 mm² for each connection.
Push-button manual override with locking option; removable mechanical position indicator.
IEC/EN degree of protection: IP54; IEC/EN protection class: II, reinforced insulation.
