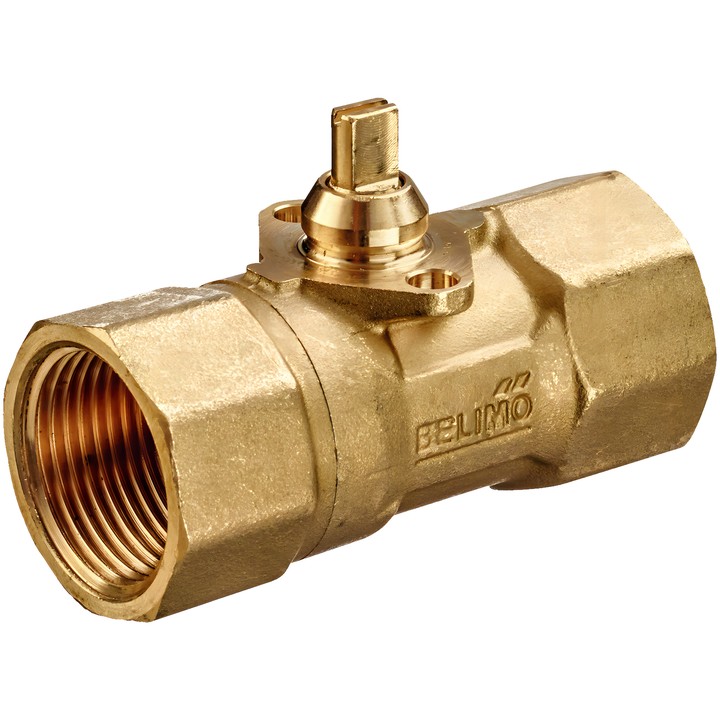

Belimo C220Q-K - 2-way zone valve

Name: Belimo C220Q-K - 2-way zone valve
Brand: Belimo
SKU: C220Q-K
Price: 149.47 PLN
Availability: BackOrder

Belimo

zł149.47

VAT included

zł121.52 tax excluded

Belimo C220Q-K is a 2-way zone valve DN 20, PN 25, with Rp 3/4" female thread and Kvs 8 m³/h. Designed for closed water systems for shut-off and flow control.

Fluid: water or water with a maximum of 50% by volume glycol. Fluid temperature is 2...100°C [36...212°F], and 2...90°C with an actuator.

Delivery in approx. 14 days

Belimo C220Q-K – 2-way zone valve

Valve for closed water systems, designed for shut-off and control on the water side of air handling units and heating systems. The body is made of brass. The actuator is snap-mounted without tools.

Key technical data

DN 20, PN 25; connection: Rp 3/4" female thread.
Kvs 8 m³/h; Kvs setting available.
Fluid: water, water with a maximum of 50% by volume glycol.
Fluid temperature: 2...100°C [36...212°F]; 2...90°C with an actuator.
Differential pressure: ∆pmax 280 kPa; closing pressure: 520 kPa. For quiet operation: 50 kPa.
Flow characteristic: equal percentage (VDI/VDE 2173), optimised over the opening range.
Tightness: bubble-tight, leakage rate class A (EN 12266-1).
Body and stem: brass; closing element: chrome-plated brass; seat: PTFE, O-ring EPDM.
Rotation angle: 90°; operating range: 15...90°.

Installation is permitted from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted. Flow is possible in both directions.
