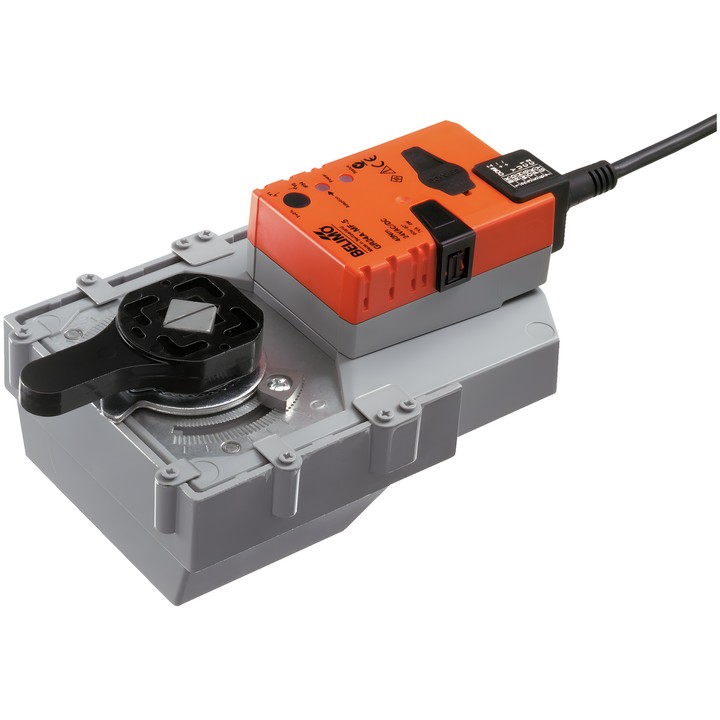

Belimo GR24A-MP-7 - rotary actuator for dampers

Name: Belimo GR24A-MP-7 - rotary actuator for dampers
Brand: Belimo
SKU: GR24A-MP-7
Price: 1897.53 PLN
Availability: BackOrder

Belimo

zł1,897.53

VAT included

zł1,542.71 tax excluded

Communicating rotary actuator for dampers with a torque of 40 Nm, powered by AC/DC 24 V. Supports modulating control 2...10 V and MP-Bus communication.

Running time is 90 s / 90° and can be set within the range of 75...270 s. The actuator features a mechanical position indicator, manual adjustment by push-button and IP54 protection rating.

Delivery in approx. 14 days

Belimo GR24A-MP-7 – rotary actuator for dampers

Communicating rotary actuator for dampers. It can operate with an analogue control signal Y or receive a digital control signal via MP-Bus. It allows a passive sensor, active sensor or switching contact to be connected and its signal to be transmitted via MP-Bus.

Key features and technical data

Motor torque: 40 Nm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Operating range Y: 2...10 V; position feedback signal U: 2...10 V.
Communication: MP-Bus; maximum 8 MP-Bus nodes.
Motor running time: 90 s / 90°; adjustable running time: 75...270 s.
Power consumption during operation: 4 W; at rest: 1.5 W; for cable sizing: 7 VA.
Power and control connection: 1 m cable, 4x 0.75 mm².
Manual adjustment by push-button, with locking option; mechanical position indicator and rotation angle adjustment using mechanical stops.
Connection flange: F07; IEC/EN protection rating: IP54.
IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

When power is first switched on, the actuator adapts the operating range and position feedback signal to the mechanical setting range.
