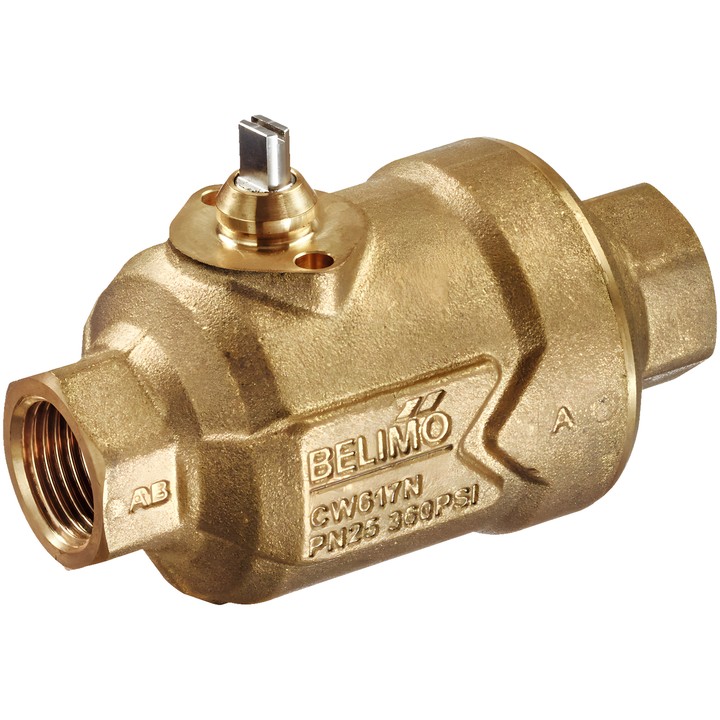

Belimo C220QP-F - 2-way PI zone valve DN 20

Belimo C220QP-F - 2-way PI zone valve DN 20

Belimo
zł614.34
VAT included
zł499.46 tax excluded

Belimo C220QP-F is a 2-way PI zone valve (PIQCV) with Rp 3/4" female thread, DN 20 diameter and nominal flow V'nom 980 l/h. It operates at a differential pressure ∆p of 16...350 kPa.

Designed for closed water systems and water-side control in ventilation and heating systems.

Delivery in approx. 14 days
Share

Belimo C220QP-F – pressure-independent zone valve

2-way PI zone valve (PIQCV) for closed water systems. Integrated pressure control enables the flow corresponding to a given valve position to be maintained across a differential pressure range of 16...350 kPa.

Key technical data

  • Nominal diameter DN 20; PN 25; Rp 3/4" female thread.
  • Nominal flow V'nom 980 l/h (0.272 l/s).
  • Differential pressure ∆p 16...350 kPa; closing pressure 1400 kPa.
  • Medium: water or water with a maximum of 50% by volume glycol.
  • Medium temperature -20...120°C [-4...248°F]; with actuator 2...90°C.
  • Equal-percentage characteristic; tightness: bubble-tight, leakage class A.
  • Brass body; stainless steel closing element and stem.

Installation notes

Installation is permitted from vertical to horizontal; installation with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body. The actuator is mounted with a snap fit.

  • Brand
    Belimo
  • Reference
    C220QP-F
  • EAN13
    7630498102257

  • V'nom [l/h]
    980
  • Medium
    Water, water with up to 50% vol. glycol.
  • Pattern
    2-way
  • Fluid temperature
    -20...120°C [-4...248°F]
  • Fluid temperature, note
    with actuator 2...90°C
  • Differential pressure
    ∆p 16...350 kPa
  • Closing pressure
    1400 kPa
  • Flow characteristic
    Equal-percentage characteristic
  • Permissible leakage
    Bubble-tight, leakage class A
  • Pipe connection
    Internal thread
  • V'nom [l/s]
    0.272

Techniczna karta katalogowa

Download (2.87MB)

Instrukcja montażu

Download (1.24MB)

Techniczna karta katalogowa – C2..QP(T)-..

Download (2.87MB)

EU Declaration of Conformity – C2..QP..-.. DN 15...25

Download (69.7KB)

Environmental Declaration – C..QP-..

Download (70.15KB)
