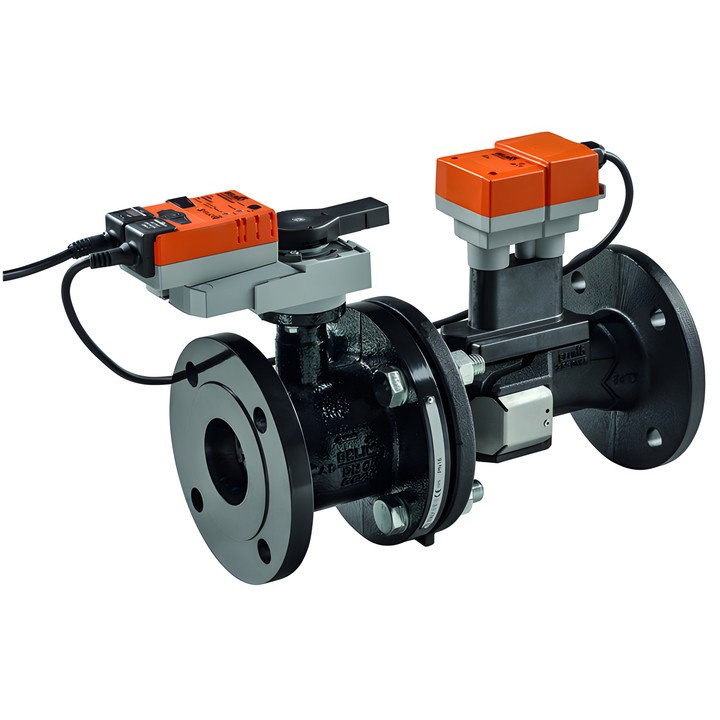

Belimo EP065F+KMP - 2-way EPIV ball valve with safety function

Name: Belimo EP065F+KMP - 2-way EPIV ball valve with safety function
Brand: Belimo
SKU: EP065F+KMP
Price: 15103.88 PLN
Availability: BackOrder

Belimo

zł15,103.88

VAT included

zł12,279.58 tax excluded

DN 65 flanged EPIV control ball valve, PN 16, with safety function. Controls flow independently of pressure changes using ultrasonic flow measurement. V'nom is 8 l/s, and V'max can be set from 30...100% V'nom.

AC/DC 24 V power supply; MP-Bus communication or analog control with a 2...10 V signal. Designed for closed-loop water systems.

Delivery in approx. 14 days

Belimo EP065F+KMP – DN 65 EPIV valve

The 2-way control ball valve with measuring tube and actuator controls flow based on the sensor signal. If the power supply is interrupted, energy stored in the capacitors allows the actuator to move the valve to the selected safety position.

Key features

DN 65, flanged connection, PN 16.
V'nom: 8 l/s; adjustable V'max: 30...100% V'nom.
Ultrasonic flow measurement; flow control independent of pressure changes.
AC/DC 24 V power supply; MP-Bus communication or analog control, operating range Y 2...10 V.
Safety function with NC/NO position or adjustable 0...100% (POP knob); safety function travel time: 35 s / 90°.
Fluid: water, water with max. 50% by vol. glycol; fluid temperature: -10...120°C [14...248°F].
Maximum differential pressure ∆pmax 340 kPa; closing pressure ∆ps 690 kPa.
Equal-percentage flow characteristic, switchable to linear; leakage class A (EN 12266-1).

The device is intended for closed-loop water systems and analog flow control in water circuits of ventilation units and heating systems.
