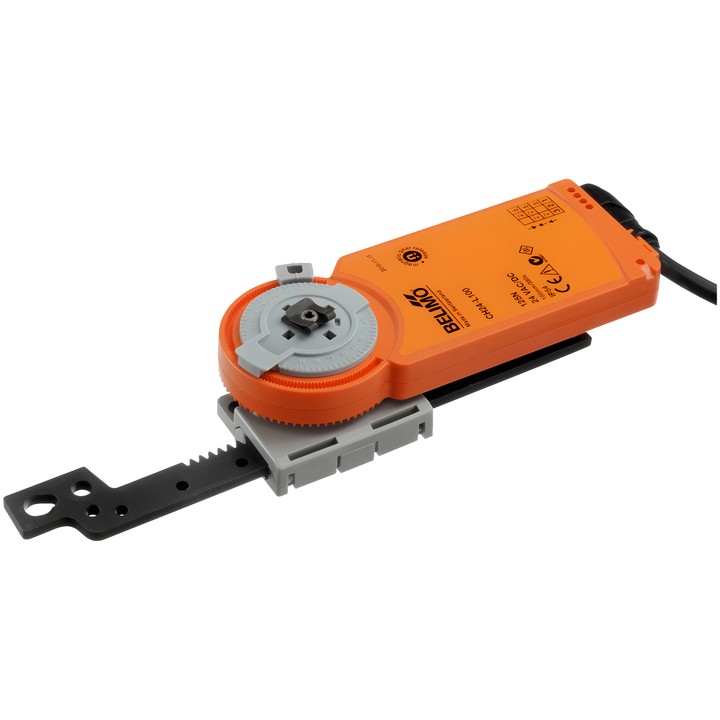

Belimo CH230-L100.2 - linear actuator for dampers

Name: Belimo CH230-L100.2 - linear actuator for dampers
Brand: Belimo
SKU: CH230-L100.2
Price: 894.21 PLN
Availability: OutOfStock

Belimo

zł894.21

VAT included

zł727.00 tax excluded

Belimo CH230-L100.2 linear actuator with a force of 125 N, powered by AC 100...240 V. 3-point Open/Close control, running time 380 s / 100 mm and max. stroke 100 mm.

Degree of protection IP54. Product available in a pack of 20 pcs.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CH230-L100.2 – linear actuator

Actuator for controlling air dampers and gates in technical building systems. For air dampers with an area of up to approx. 0.8 m².

Main features and parameters

Motor force: 125 N.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: 3-point Open/Close.
Stroke: max. 100 mm, adjustable in 20 mm increments; stroke can be limited from both sides using mechanical stops.
Motor running time: 380 s / 100 mm; running time is constant and independent of load.
Power consumption: 1.5 W during operation, 1 W at rest; 3 VA for cable sizing.
Power and control connection: 1 m cable, 3x 0.75 mm².
Motor direction of movement determined by the electrical installation; manual adjustment using a magnet.
Degree of protection IEC/EN IP54; protection class IEC/EN II, reinforced insulation.
Ambient temperature: -30...50°C [-22...122°F].
Pack: 20 pcs.
