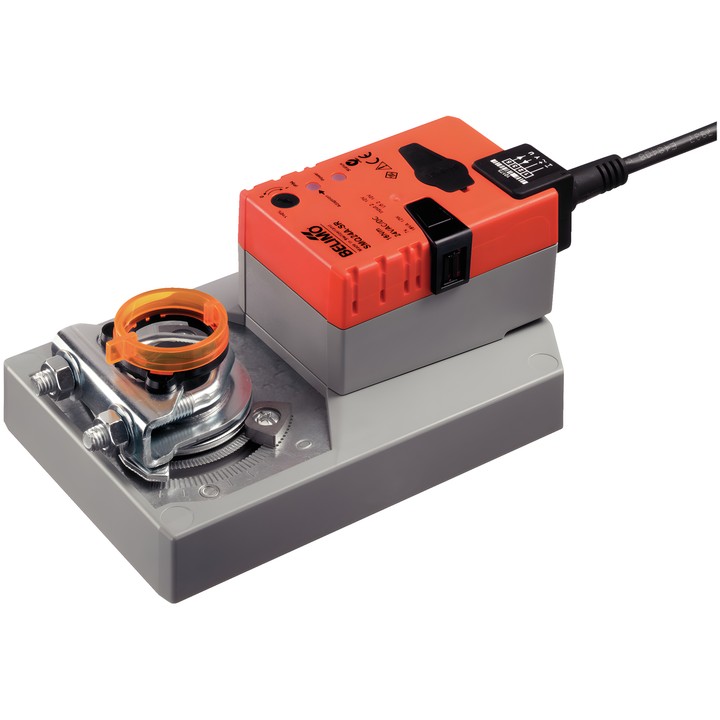

Belimo SMQ24A-SR – actuator for dampers

Modulating actuator designed to regulate dampers in building technical systems. According to the technical data sheet, it supports air dampers with an area of up to approx. 3.2 m².

Key features

  • Torque: 16 Nm; supply: AC/DC 24 V, 50/60 Hz.
  • Operating range Y: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 7 s / 90°; rotation angle: max. 95°.
  • Direction of movement selected by switch 0/1.
  • Rotation angle adjustment by mechanical end stops; minimum permissible angle: 30°.
  • Manual adjustment by push-button with locking option and mechanical position indicator.
  • Reversible universal mounting clamp for shaft 12...26.7 mm.
  • Power and control connection: cable 1 m, 4x 0.75 mm².
  • Power consumption during movement: 15 W; at rest: 2 W; sizing power: 26 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...40°C [-22...104°F].

When the power is switched on for the first time, the actuator adapts to the mechanical adjustment range. Adaptation can also be started using the push-button.

  • Brand
    Belimo
  • Reference
    SMQ24A-SR
  • EAN13
    7630498114632

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    15 W
  • Power consumption (holding)
    2 W
  • Rated power
    26 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    7 s / 90°
  • Ambient temperature
    -30...40°C [-22...104°F]
  • Torque
    16 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 12...26.7 mm
