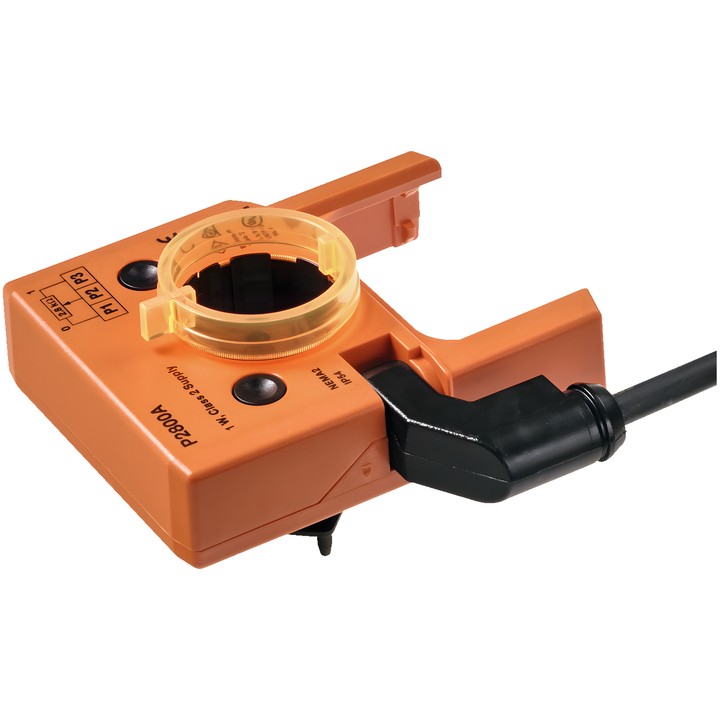

Belimo P2800A - feedback potentiometer

Name: Belimo P2800A - feedback potentiometer
Brand: Belimo
SKU: P2800A
Price: 364.82 PLN
Availability: BackOrder

Belimo

zł364.82

VAT included

zł296.60 tax excluded

Clip-on feedback potentiometer for damper actuators and rotary actuators. Nominal resistance 2.8 kΩ, tolerance ±5%.

Equipped with a 1 m FRNC halogen-free cable, 3x 0.75 mm². Protection rating IP54.

Delivery in approx. 14 days

Belimo P2800A – feedback potentiometer

Potentiometer mounted on a damper actuator or rotary actuator. The carrier plate transfers the position from the shaft clamp of the damper actuator or the position indicator of the rotary actuator to the potentiometer. The device is intended, among other uses, for modulating damper control in combination with controllers with fixed feedback.

Key specifications

Nominal resistance: 2.8 kΩ; tolerance: ±5%.
Maximum load: 1 W; linearity: ±2%; resolution: min. 1%.
Residual resistance: max. 5% on both sides.
Connection: 1 m cable, 3x 0.75 mm², FRNC (halogen-free).
IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].
Product weight: 0.19 kg.

The potentiometer can also be used with commercially available damper position indication systems or as a setpoint device for actuators operating in parallel.
