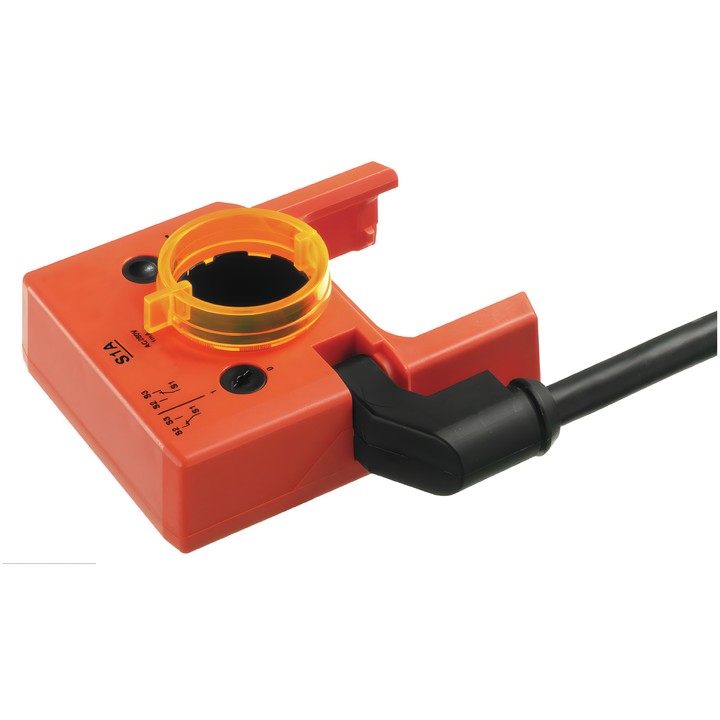

Belimo S1A - snap-on auxiliary switch

Name: Belimo S1A - snap-on auxiliary switch
Brand: Belimo
SKU: S1A
Price: 213.44 PLN
Availability: BackOrder

Belimo

zł213.44

VAT included

zł173.53 tax excluded

Snap-on 1x SPDT auxiliary switch for damper actuators and rotary actuators. The switching point can be adjusted within 0...100% of the actuator rotation.

Connection: 1 m cable, 3 x 0.75 mm². Degree of protection IP54.

Delivery in approx. 14 days

Belimo S1A – auxiliary switch

Snap-on auxiliary switch for position indication or switching functions at a selected actuator angle setting for a damper actuator or rotary actuator. Mounted directly on the shaft clamp of a damper actuator or on the position indicator of a rotary actuator.

Main features and specifications

Auxiliary switch: 1x SPDT.
Adjustable switching point: 0...100% of the actuator rotation range; presetting using a scale is possible.
Switch contact rating: 1 mA...3 A (0.5 A inductive), DC 5 V...AC 250 V; 1 mA...0.5 A (0.2 A inductive; L/R = 3.4 ms), DC 5 V...DC 110 V.
Auxiliary switch connection: 1 m cable, 3 x 0.75 mm².
Degree of protection IEC/EN: IP54; degree of protection NEMA/UL: NEMA 2; enclosure: UL Enclosure Type 2.
Ambient temperature: -30...50°C [-22...122°F].
Weight: 0.21 kg.

Adjust the auxiliary switch only when the power supply is switched off.
