Belimo SHQ24A-SR100 linear actuator for controlling dampers and slide gates in building technical systems. AC/DC 24 V supply, 200 N force, 2...10 V control and 2...10 V position feedback signal.

Max. stroke 100 mm, adjustable in 20 mm increments; motor running time 7 s / 100 mm. IEC/EN IP54 protection rating.

Delivery in approx. 14 days
Share

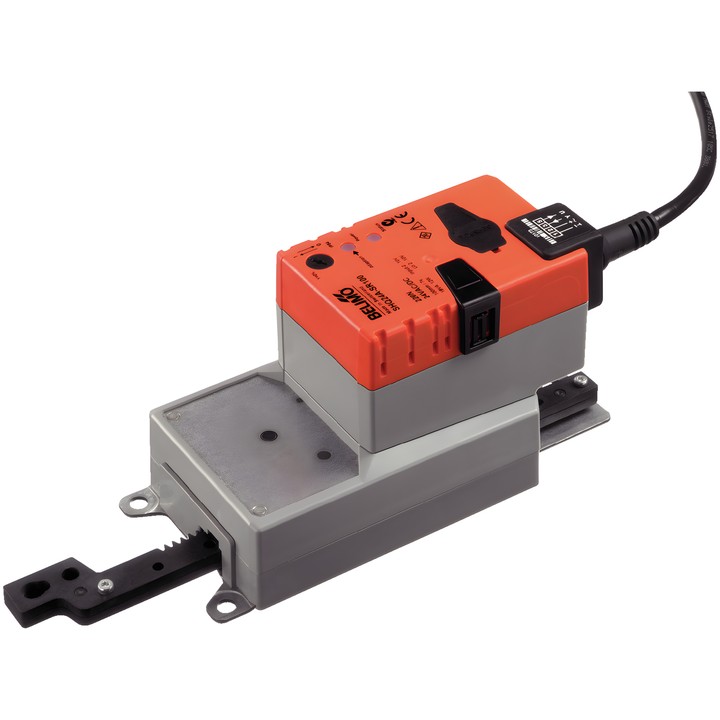

Belimo SHQ24A-SR100 – linear actuator

Modulating linear actuator for controlling dampers and slide gates in building technical systems. According to the technical data sheet, it is designed for air dampers with an area of up to approx. 1.3 m².

Key specifications

  • Actuator force: 200 N; supply: AC/DC 24 V, 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V.
  • Stroke: 100 mm; max. 100 mm, adjustable in 20 mm increments, with a minimum permissible stroke of 40 mm.
  • Motor running time: 7 s / 100 mm.
  • Power consumption during operation: 13 W; in standby position: 2 W; for cable sizing: 23 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Direction of movement selected by switch; manual override by push button with locking option.
  • Setpoint range adaptation is manual and automatic on first power-up.
  • IEC/EN IP54 protection rating; IEC/EN protection class III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...40°C [-22...104°F].

  • Brand
    Belimo
  • Reference
    SHQ24A-SR100
  • EAN13
    7630498114304

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    13 W
  • Power consumption (holding)
    2 W
  • Rated power
    23 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Force
    200 N
  • Manual override
    Push-button, with locking option
  • Stroke
    100 mm
  • Running time (motor)
    7 s / 100 mm
  • Ambient temperature
    -30...40°C [-22...104°F]
  • Direction of movement - motor
    Selectable by switch

Techniczna karta katalogowa

Download (1.16MB)

Instrukcja montażu

Download (523.51KB)

EU Declaration of Conformity – SHQ24A-SR100

Download (32.78KB)

Environmental Declaration – SH..100..

Download (71.95KB)
