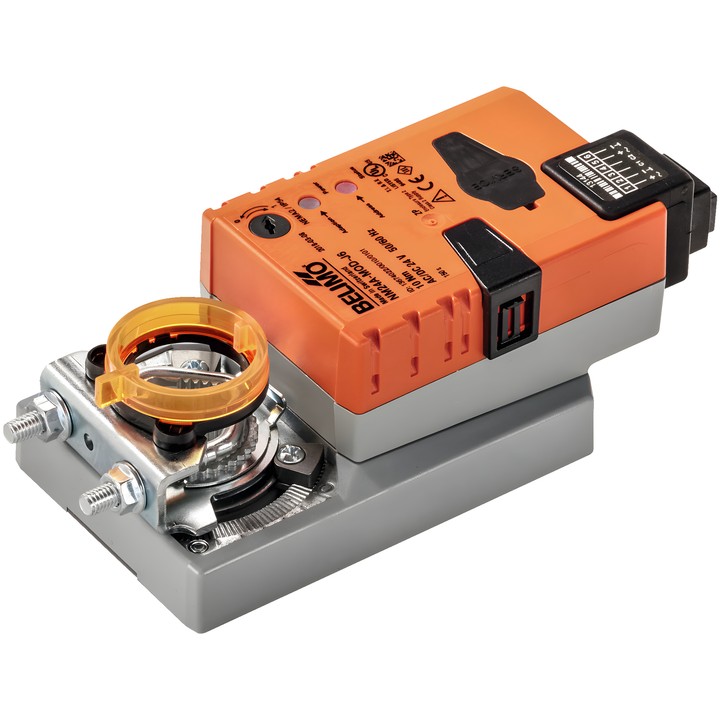

Belimo NM24A-MOD-J6 - damper actuator

Belimo NM24A-MOD-J6 - damper actuator

Belimo
zł1,943.40
VAT included
zł1,580.00 tax excluded

Belimo NM24A-MOD-J6 communication-capable damper actuator with a torque of 10 Nm, powered by AC/DC 24 V. Supports BACnet MS/TP and Modbus RTU; the RJ12 plug socket provides the power and control connection.

Motor running time is 150 s / 90°, and the degree of protection is IP40.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo NM24A-MOD-J6

Communication-capable actuator for controlling dampers in building services systems. Designed for air dampers with an area of up to approx. 2 m². It receives a digital control signal and reports its current status via BACnet MS/TP or Modbus RTU.

Key features and parameters

  • Torque: 10 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
  • Communication: BACnet MS/TP and Modbus RTU; factory setting: Modbus RTU.
  • Motor running time: 150 s / 90°; adjustable running time: 43...173 s.
  • Rotation angle: max. 95°; adjustable mechanical stops on both sides.
  • Direction of movement selected by 0/1 switch; manual adjustment using a push-button with locking option.
  • Universal shaft clamp for 8...26.7 mm; mechanical plug-in position indicator.
  • Power consumption during operation: 3.5 W; in the idle position: 1.4 W; for cable sizing: 6 VA.
  • Power and control connection: RJ12 plug socket.
  • Degree of protection IEC/EN: IP40; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

After the power is switched on, the actuator performs synchronisation. The setting range adaptation can be started manually; selected parameters can be changed using Belimo Assistant 2.

  • Brand
    Belimo
  • Reference
    NM24A-MOD-J6

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1.4 W
  • Rated power
    6 VA
  • Power supply control connection
    RJ12 socket
  • Control type
    BACnet MS/TP Modbus RTU
  • Protection rating
    IP40
  • NEMA protection rating
    NEMA 1
  • Enclosure type
    UL Enclosure Type 1
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Variable motor running time
    43...173 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 8...26.7 mm

Techniczna karta katalogowa

Download (1.8MB)

Instrukcja montażu

Download (716.84KB)

Techniczna karta katalogowa – NM24A-MOD-J6

Download (1.8MB)

EU Declaration of Conformity – NM24A-MOD-J6

Download (40.48KB)

Environmental Declaration – NM..

Download (72.4KB)
