Belimo SF24A-SR - rotary actuator for dampers with safety function

Belimo SF24A-SR - rotary actuator for dampers with safety function

Belimo
zł1,291.35
VAT included
zł1,049.88 tax excluded

Rotary actuator for dampers with safety function, with a torque of 20 Nm and AC/DC 24 V supply. Modulating control 2...10 V, position feedback signal 2...10 V and motor running time of 150 s / 90°.

When the supply voltage fails, the return spring moves the damper to the safety position.

Delivery in approx. 14 days
Share

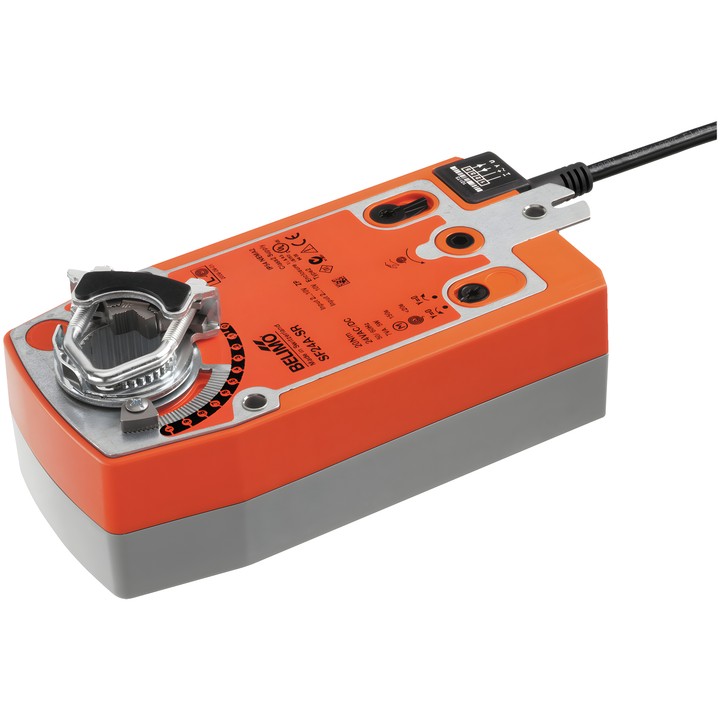

Belimo SF24A-SR

Rotary actuator with safety function designed to control dampers in technical building systems. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 4 m². The Y control signal moves the damper to the operating position and simultaneously tensions the return spring. When the power supply is interrupted, the spring moves it to the safety position.

Key features and specifications

  • Motor and safety function torque: 20 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Y operating range: 2...10 V; position feedback signal U: 2...10 V.
  • Motor running time: 150 s / 90°; safety function running time: <20 s @ -20...50°C, <60 s @ -30°C.
  • Rotation angle: max. 95°; adjustment by mechanical stops.
  • Mechanical connection: universal clamp 10...25.4 mm.
  • Manual adjustment using a crank and locking switch; mechanical position indicator.
  • Power consumption during operation: 5 W; at rest: 3 W; sizing power: 7 VA.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Degree of protection: IP54; ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    SF24A-SR
  • EAN13
    7630498114083

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    5 W
  • Power consumption (holding)
    3 W
  • Rated power
    7 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Using the crank and locking switch
  • Running time (motor)
    150 s / 90°
  • Running time (safety function)
    ＜20 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable using the L/R switch
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 10...25.4 mm
  • Direction of rotation (safety function)
    Selectable by mounting L/R

Techniczna karta katalogowa

Download (1.37MB)

Instrukcja montażu

Download (1.64MB)

EU Declaration of Conformity – SF24A-SR

Download (47.89KB)

Environmental Declaration – SF..

Download (72.39KB)
