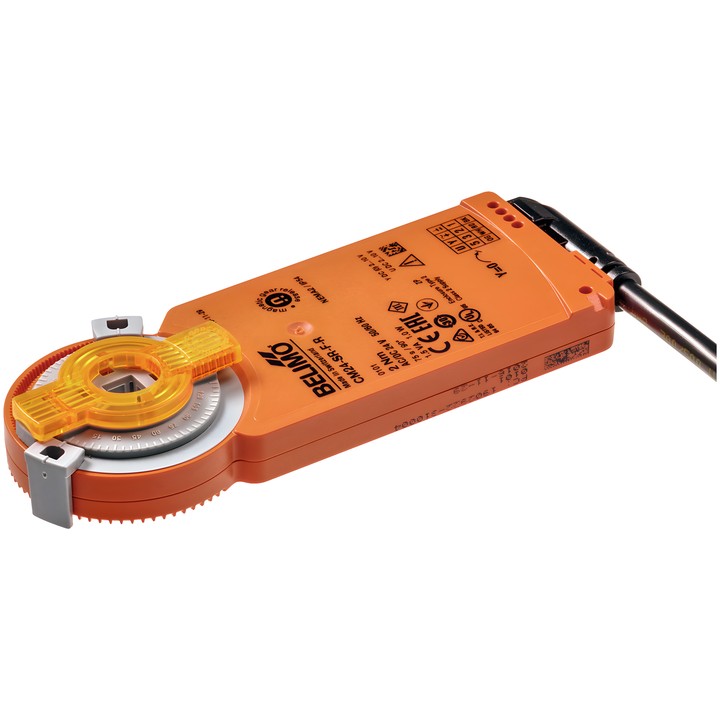

Belimo CM24-SR-F-R - modulating damper actuator

Belimo CM24-SR-F-R - modulating damper actuator

Belimo
zł541.97
VAT included
zł440.63 tax excluded

Belimo CM24-SR-F-R damper actuator with 2 Nm torque, AC/DC 24 V supply and 2...10 V control. Running time is 75 s / 90°, and the mechanical connection is an 8x8 mm form-fit connection.

Delivery in approx. 14 days
Share

Belimo CM24-SR-F-R

Modulating actuator for positioning dampers in technical building systems. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 0.4 m².

Key features

  • Torque: 2 Nm; supply: AC/DC 24 V, 50/60 Hz.
  • Control: 2...10 V; position feedback signal: 2...10 V.
  • Motor running time: 75 s / 90°; angle of rotation: 95°, fixed setting, with mechanical angle-of-rotation stops.
  • Motor rotation direction: clockwise (cw); manual adjustment using a magnet.
  • Mechanical connection: 8x8 mm form-fit connection; power and control connection: 1 m cable, 4x 0.75 mm².
  • Power consumption during operation: 1 W; at rest: 0.5 W; sizing power: 1.5 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    CM24-SR-F-R
  • EAN13
    7630498110221

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    1.5 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Using a magnet
  • Running time (motor)
    75 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    2 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    95°
  • Mechanical connection
    Form-fit connection 8x8 mm

Techniczna karta katalogowa

Download (1.04MB)

Instrukcja montażu

Download (553.37KB)

EU Declaration of Conformity – CM24-SR-F-R

Download (32.76KB)

Environmental Declaration – CM..

Download (72.47KB)
