Belimo NM24A-S-TP - damper actuator

Belimo NM24A-S-TP - damper actuator

Belimo
zł691.60
VAT included
zł562.28 tax excluded

Belimo NM24A-S-TP damper actuator with 10 Nm torque, AC/DC 24 V supply and 3-point Close/Open control. Motor running time is 150 s / 90°.

Equipped with an adjustable 1x SPDT auxiliary switch, universal clamp 8...26.7 mm and terminal connections. IEC/EN protection rating: IP54.

Delivery in approx. 14 days
Share

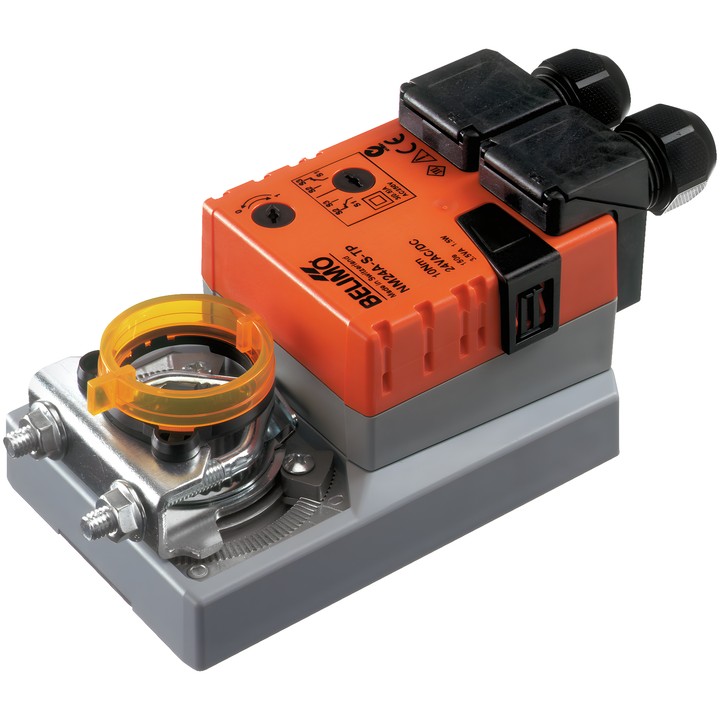

Belimo NM24A-S-TP – damper actuator

Rotary actuator designed to position air dampers in stationary heating, ventilation and air conditioning systems. According to the technical data sheet, it is intended for dampers with an area of up to approx. 2 m².

Key features

  • Motor torque: 10 Nm; nominal voltage: AC/DC 24 V.
  • 3-point Close/Open control; motor running time: 150 s / 90°.
  • 1x SPDT auxiliary switch with adjustable switching point 0...100%.
  • Direction of movement selected by switch 0 (counterclockwise rotation) / 1 (clockwise rotation).
  • Angle of rotation: Max. 95°, with the option of limiting travel on both sides using adjustable mechanical stops.
  • Manual adjustment by push button with locking option; mechanical position indicator.
  • Universal clamp 8...26.7 mm; power, control and auxiliary switch connections: 4 mm² terminals (cable ø4...10 mm, 3-core).
  • Power consumption during operation: 1.5 W; at rest: 0.2 W; power for wire sizing: 3.5 VA.
  • IEC/EN protection rating: IP54; ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    NM24A-S-TP
  • EAN13
    7630498113192

  • AC/DC voltage
    AC/DC 24 V
  • Auxiliary switch connection
    Terminals 4 mm² (cable ø4...10 mm, 3-core)
  • Power consumption (running)
    1.5 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    3.5 VA
  • Power supply control connection
    Terminals 4 mm² (cable ø4...10 mm, 3-core)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Auxiliary contacts
    1x SPDT
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 8...26.7 mm

Techniczna karta katalogowa

Download (2.06MB)

Instrukcja montażu

Download (203.35KB)

Techniczna karta katalogowa – NM24A-S-TP

Download (2.07MB)

EU Declaration of Conformity – NM24A-S-TP

Download (32.79KB)

Environmental Declaration – NM..

Download (72.38KB)
