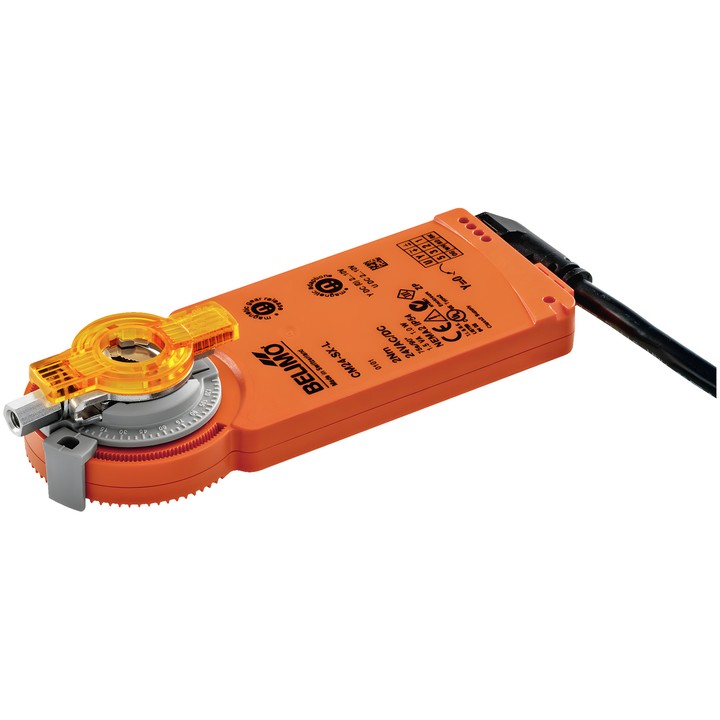

Belimo CM24-SX-L - modulating damper actuator

Belimo CM24-SX-L - modulating damper actuator

Belimo
zł1,130.37
VAT included
zł919.00 tax excluded

Belimo CM24-SX-L damper actuator with 2 Nm torque, AC/DC 24 V supply and 2...10 V modulating control. The running time is 75 s / 90°, and the position feedback signal is 2...10 V.

Equipped with a universal shaft clamp for 6...12.7 mm shafts, mechanical rotation angle limiters and manual adjustment using a magnet.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CM24-SX-L damper actuator

A modulating actuator for positioning dampers in building services installations. According to the technical data sheet, it is designed for air dampers with a surface area of up to approx. 0.4 m².

Key features and specifications

  • Torque: 2 Nm; supply: AC/DC 24 V, 50/60 Hz.
  • Modulating control: 2...10 V; position feedback: 2...10 V.
  • Motor running time: 75 s / 90°; direction of rotation: counterclockwise (ccw).
  • Rotation angle: 0...287.5°; adjustable using mechanical limiters.
  • Manual adjustment and manual adaptation start using a magnet; automatic adaptation on first power-up.
  • Universal shaft clamp for 6...12.7 mm shafts and mechanical position indicator.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Power consumption during operation: 1 W; in the idle position: 0.5 W; sizing power: 1.5 VA.
  • IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    CM24-SX-L

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1 W
  • Power consumption (holding)
    0.5 W
  • Rated power
    1.5 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Using a magnet
  • Running time (motor)
    75 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    2 Nm
  • Direction of movement - motor
    counterclockwise rotation (ccw)
  • Rotational angle
    0...287.5°
  • Mechanical connection
    Universal clamp 6...12.7 mm

Techniczna karta katalogowa

Download (1MB)

Instrukcja montażu

Download (673.31KB)

EU Declaration of Conformity – CM24-SX-L

Download (38.79KB)

Environmental Declaration – CM..

Download (72.45KB)
